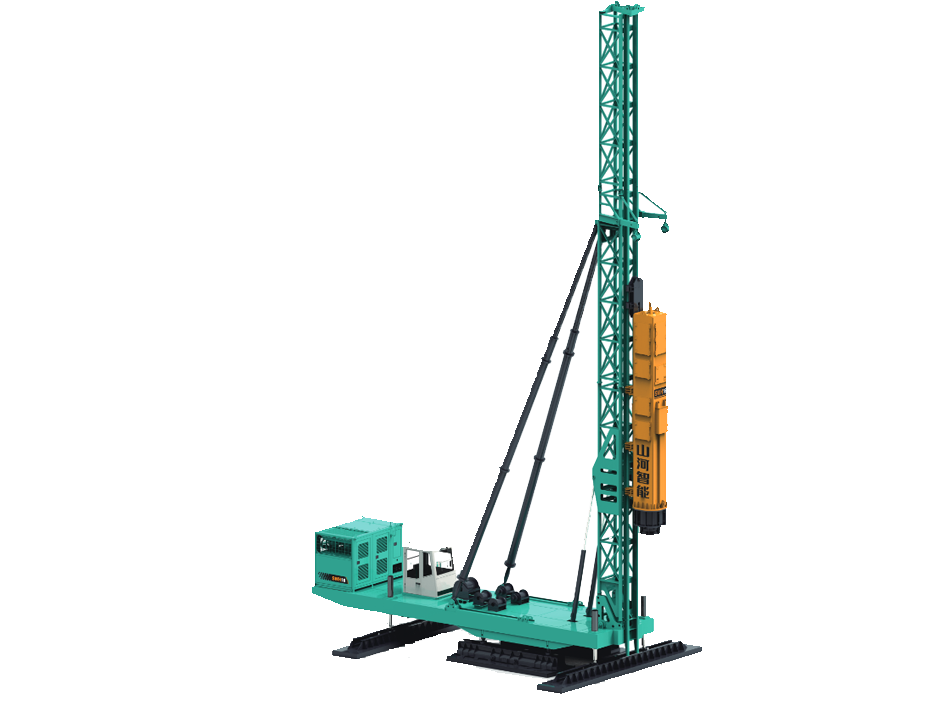

SWEW500
MAX.DRILLING DIAMETER: 1200/1000mm
MAX.DRILLING DEPTH: 33m
Technical Parameters
-
UNDERCARRIAGEOVERALL WIDTH WITH RETRACTED CRAWLERS
2500mm
OVERALL WIDTH WITH EXTENDED CRAWLERS3400mm
WIDTH OF TRIPLE GROUSER TRACK SHOES500mm
OVERALL LENGTH OF CRAWLERS4070mm
TRACTION FORCE (EFFECTIVE / NOMINAL)209/246 kN
TRACTION FORCE (EFFECTIVE / NOMINAL)209/246 kN
TRAVELLING SPEED1.3 km/h
-
ROTARY HEADMAX.NOMINAL TOROUE
80 kN.m
SPEED OF ROTATION3400mm
WIDTH OF TRIPLE GROUSER TRACK SHOES8~35 rpm
SPIN OFF SPEED60 rpm
WEIGHT1.6 T
-
ENGINEPOWER RATING
CUMMINS F3.8
SPEED OF ROTATION90 KW @ 2200 RPM
ENGINE EMISSIONEU STAGE V/US EPA TIRE 4F
FUEL TANK CAPACITY310 L
AD BLUE TANK CAPACITY18.5 L
-
HYDRAULIC SYSTEMMAIN PUMPS FLOW @1900 RPM
266 L/min
HYDRAULIC OIL TANK CAPACITY320L
HYDRAULIC PRESSURE320 bar
