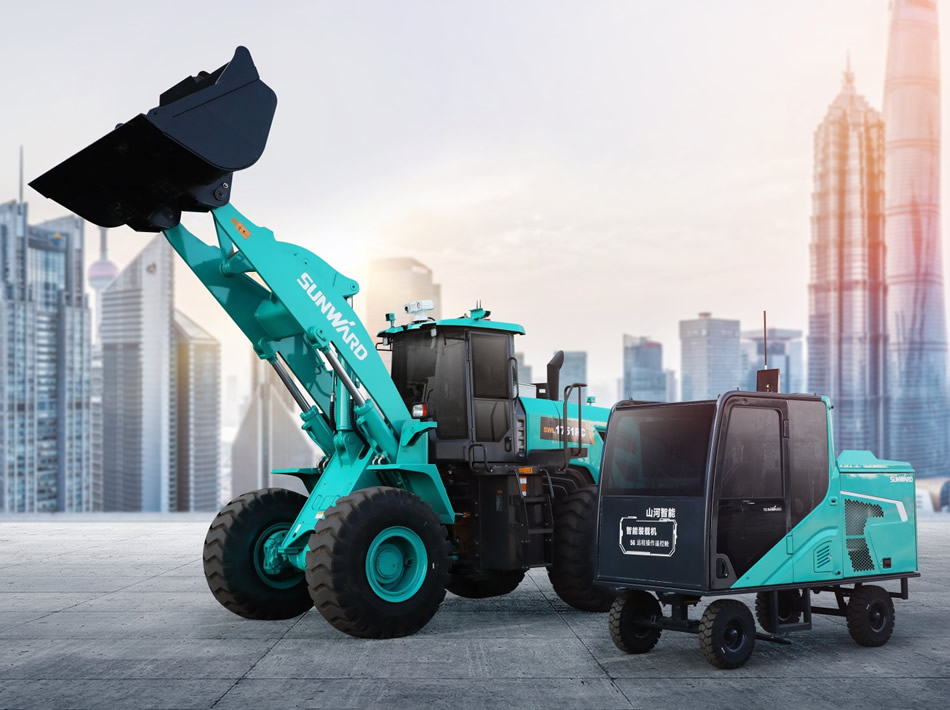

SWL1751RC

Technical Parameters

• Main dimensions of complete machine
  Overall length

  7780mm

  Maximum length of host

  5860mm

  Maximum width of main engine (outside bucket)

  2990mm

  Maximum total height of main engine

  3600mm

  Wheel tread

  2240mm

  Wheelbase

  3230mm

  Rear overhang length

  1820mm

  Spacing between rear axle and articulation point

  1615mm

• Engine
  Model

  WP10G220E343

  Rated power

  162 Kw

  Rated speed

  2000rpm

• Operation parameters
  Rated working load

  5000kg

  Bucket capacity

  3.0m³

  Unloading angle

  45°

  Maximum flip angle at maximum lift

  59°

  Unloading height

  3100mm

  Height of pin shaft at maximum lifting

  4165mm

  Dumping distance at maximum lift

  1220mm

  Height of transport position

  460mm

  Lifting time

  5.5S

  Unloading time

  1.7S

  Falling time

  3.3S

• Performance parameters
  Minimum turning radius

  6550mm

  Max. wading depth

  600mm

  Minimum ground clearance

  400mm

  Articulation steering angle

  35°

  Maximum gradeability

  50%

  Maximum breakout force

  180kN

  Maximum traction force

  160mmkN

  Maximum lifting height lifting capacity

  5000kg

  Operating mass

  17300kg

  Driving speed

  Forward: 11.5/backward: 16 km/h
  Forward 36 km/h

• Remote control system parameter
  Remote control distance

  ≥2000m

  Image transmission delay

  ≤200ms

  Data transmission delay

  ≤50ms

  Number of Cameras

  ≥4Pcs

  Number of PTZs

  ≥1Pcs

  PTZ image resolution

  ≥1080P

  Camera resolution

  ≥720P

  Number of people in remote control cabin

  2Pcs

• Parameters of short-range remote control system
  Endurance

  ≥5h

  Remote control distance

  ≥200m

  Data transmission delay

  ≤50ms
