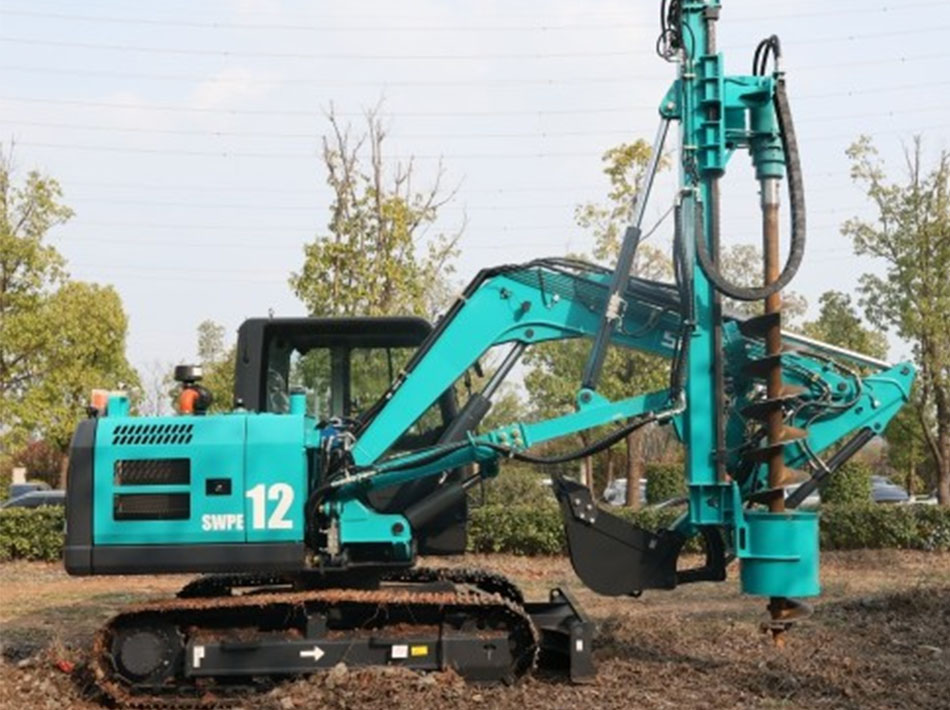

SWPE12
Machine Weight (with all Attachments) : 10t
Maximum Climbing Power: Tracks/tyres: 30°
Technical Parameters
-
SizeMachine Weight (with all Attachments)
10t
Maximum Climbing Power30°
Working Size (L*W*H)4900X2300X6400mm
Shipping Size(L*W*H)6300X2300X3100mm
-
EngineModel
YANMAR
Power53.7@2100kW@rpm
-
BoreholeMaximum Output Torque
15kN·m
Working Speed15~38r/min
Maximum Drill Diameterφ500mm
Maximum Drill Depth2200mm
Maximum Drill Distance3200mm
Maximum Force Level35kN
-
ExhumationShovel width
500mm
Maximum digging distance6400mm
Maximum digging height7200mm
Maximum digging depth4000mm
-
RodMaximum Stick Distance
3800mm
Maximum Stick Weights1.8 (12m pole)t
-
SumpTrack plate width
450mm
Track pitch2898mm
Track width2250mm
Front and rear wheelbase2269mm
