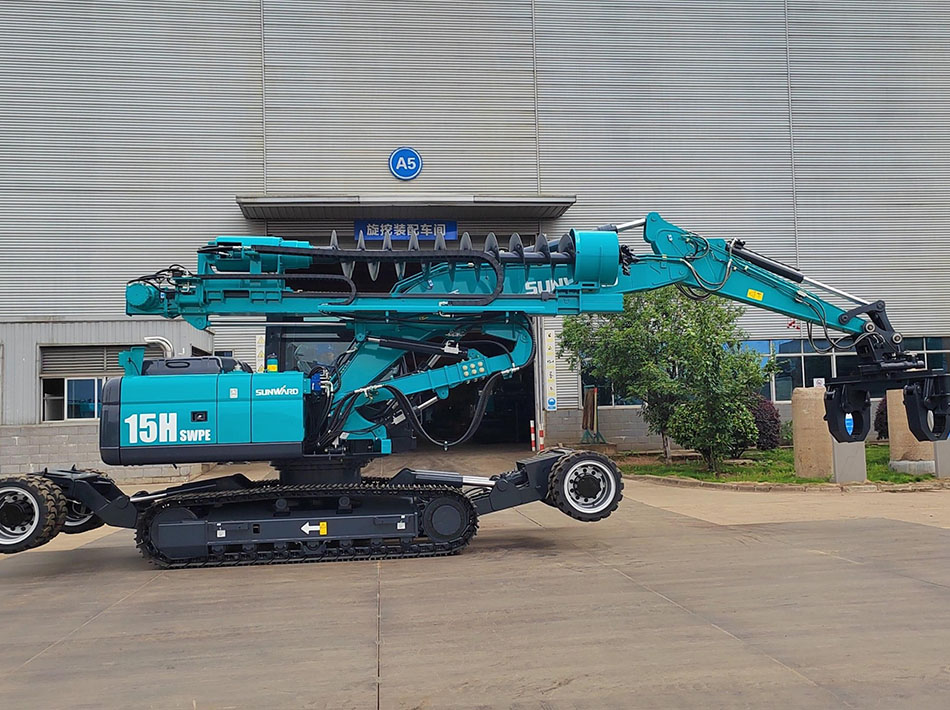

SWPE15H
Weight of the whole machine (including all attachments): 20.5t
Maximum Climbing Power: Tracks/tyres: 25/20°
20.5tWeight of the whole machine (including all attachments)
25/20°Maximum Climbing Power: Tracks/tyres
9000X2500X6700mmWorking Size (L*W*H)
9000X2550X3500mmShipping Size(L*W*H)
92@2200kW@rpmPower
40kN·mMaximum Output Torque
×
Technical Parameters
-
SizeWeight of the whole machine (including all attachments)
20.5t
Maximum Climbing Power: Tracks/tyres25/20°
Working Size (L*W*H)9000X2500X6700mm
Shipping Size(L*W*H)9000X2550X3500mm
-
EngineModel
YANMAR
Power92@2200kW@rpm
-
BoreholeMaximum Output Torque
40kN·m
Working Speed0~13r/min
Maximum Drill Diameterφ600mm
Maximum Drill Depth3100mm
Maximum Drill Distance4200mm
Maximum Force Level50kN
-
ExhumationShovel width
900mm
Maximum digging distance8300mm
Maximum digging height8900mm
Maximum digging depth3500mm
-
RodMaximum Stick Distance
7500(at 12m pole)mm
Maximum Stick Weights2.3 (sectional grouping of 18m poles)t
-
SumpTrack plate width
500mm
Track pitch3700mm
Track width2500mm
Front and rear wheelbase2915mm
