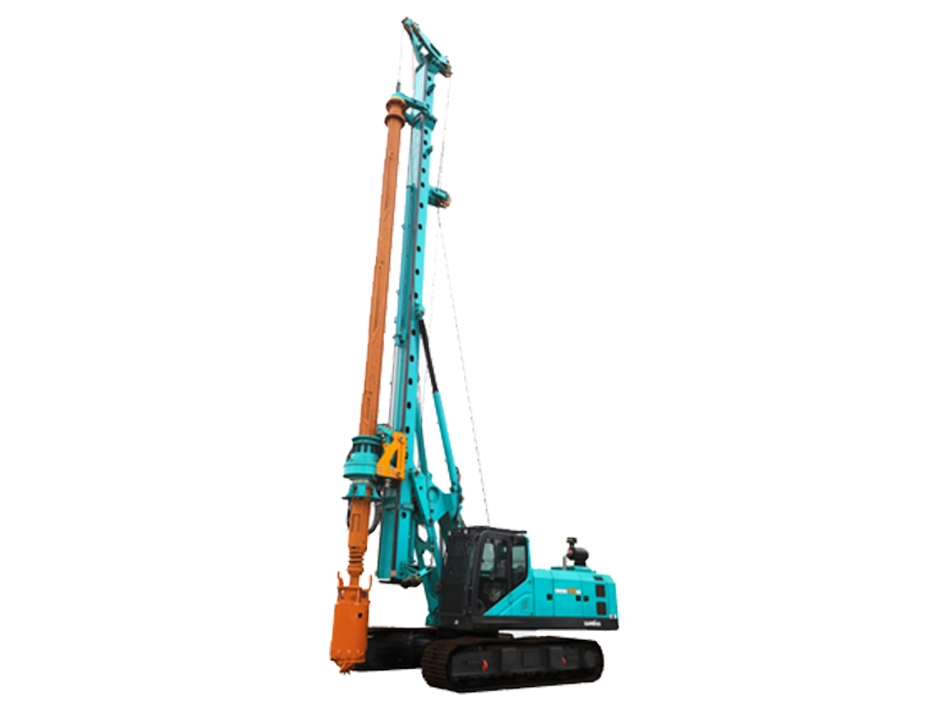

SWDM160H2

Technical Parameters

• Drilling
  Max. Pile Diameter

  1500mm

  Max. Pile Depth

  56/44m

• Engine
  Mode

  QSB6.7-C260

  Rated Power

  194@2200kW@rpm

• Rotary Head
  Max.Torque

  168kN.m

  Rotation Speed

  6~42rpm

  High-Speed Soil Throwing (optional)

  70rpm

• Main Winch
  Max.Line Pull

  165kN

  Max.Line Speed

  80m/min

  Rope Diameter

  28mm

• Crowd System
  Max. Pressure

  150kN

  Max. Line Pull

  160kN

  Max.stroke

  4000mm

• Auxiliary Winch
  Max. Line Pull

  50kN

  Max. Line Speed

  50m/min

  Rop diameter

  16mm

• Dril Mast
  Lateral Inclination

  ±4°

  Forward & Rearward Inclinaition

  5/90°

• Chassis
  Crawler Width

  700mm

  Track Retraction and Extension Width

  2980~3980mm

  Chassis Length

  4645mm

• Overall Machine
  Working Height

  18330mm

  Operating Weight

  49t

• Drill pipe parameters
  SWDM160H2
  Friction Kelly Bar

  377-5X12.1m/377-5X10m

  Hole depth (m)

  56/45

  Drill pipe weight (kg)

  7400/6327

  SWDM160H2
  Interlocking Kelly Bar

  377-4X12.1m/377-4X10m

  Hole depth (m)

  44/35

  Drill pipe weight (kg)

  7400/6270
