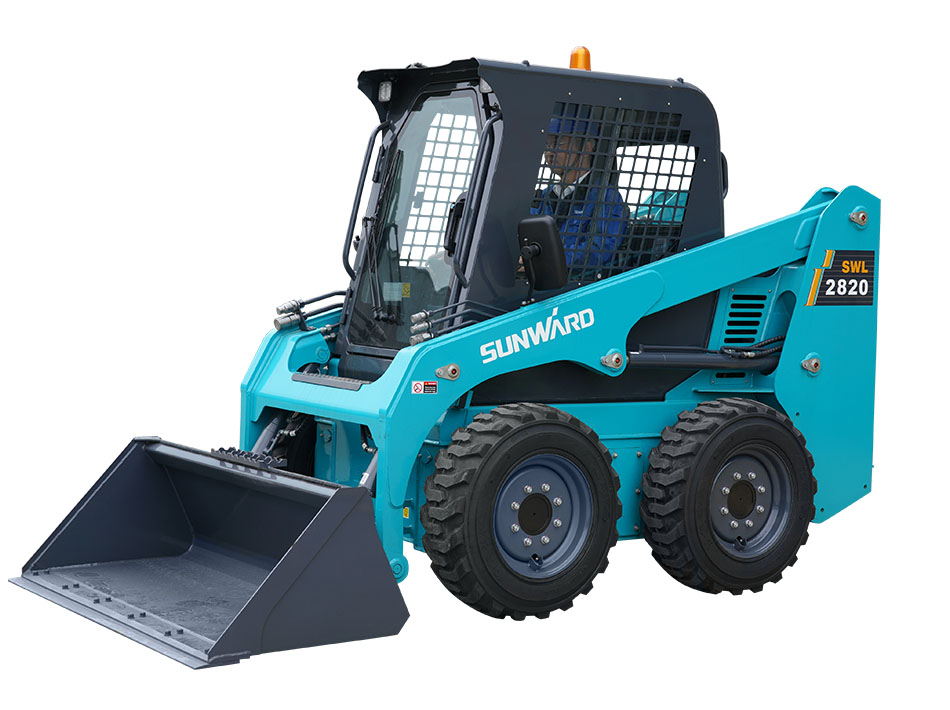

SWL2820
Boundary dimension(L×W×H): 3318X1600X2014mm/130.6X63.0X79.3in
Operating weight: 2750kg/6063lb
Technical Parameters
-
Parameter ModlelBoundary dimension(L×W×H)
3318X1600X2014 mm/130.6X63.0X79.3 in
Operating weight2750kg/6063lb
Rated operating capacity750kg/1655lb
Tipping load1500kg/3310lb
Breakout force curl2000kg/4413lb
Travel speed13kph/8.1mph
Bucket capacity0.4m3/14.1ft3
-
Machine DimensionsMaximum overall height
3850mm/151.6in
Height to hinge pin3002mm/118.2in
Height to top of cab2014mm/79.3in
Height to bottom of level bucket2834mm/111.6in
Length without standard bucket2604mm/102.5in
Length with bucket3307mm/130.2in
Maximum dump angle42 °
Dump height2320mm/91.3in
Dump reach475mm/18.7in
Rollback angle (bucket on ground)30 °
Rollback angle at maximum height97 °
Wheelbase（Track Gauge）996mm/39.2in
Ground212mm/8.3in
Departure angle25 °
Turning radius from center (Coupler)1235mm/48.6in
Turning radius from center (Bucket)1953mm/76.9in
Turning radius from center (Machine rear)1531mm/60.3in
Bumper overhang behind rear axle1001mm/39.4in
Width over tire(Crawler Base)1293mm/50.9in
Bucket width1600mm/63in
-
EngineMoadel
V2403
Type4-cylinder,water-cooled,diesel engine
Emission levelGB Ⅳ
Power36.0/2600kW/rpm/48.3hp
Peak torque156.3/1600N.m/rpm/115.3lb·ft
-
Transmission systemType
Hydrostatic closed circuit
PumpVariable displacement piston pump
Motor2XRadial plunger quantitative single speed motor
-
Hydraulic systemType
Throttling system
BumpGear pump
Hydraulic flow_Standard/63/92lpm
Hydraulic flow_High flow14/20gpm
Pressure210bar/3045psi
Control valveThree joint multi-way valve
Control modeISO model of pilot control
-
Electric systemStarter
12/2.0V/kW
Alternator rating12/60V/A
Battery120 Ah
-
Service refill capalitiesHydraulic tank
23L/6.1gal
Fuel tank75L/19.8gal
Chain box10L/2.6gal
Engine oil9.7L/2.6gal
Cooling system8L/2.1gal
-
Traveling systemTire
10-16.5
Track–
