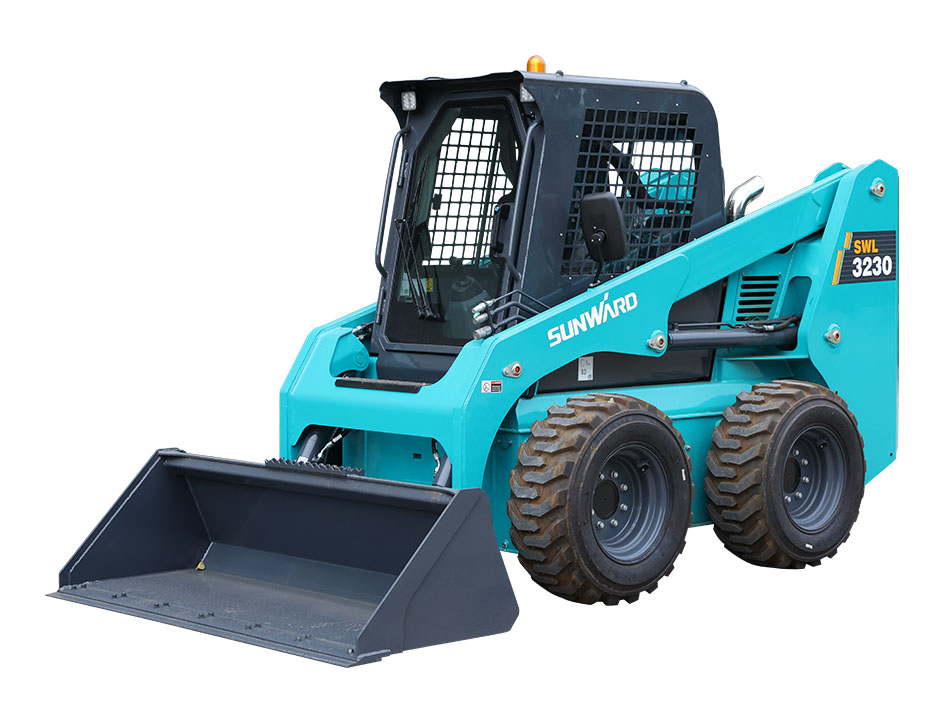

SWL3230
Boundary dimension(L×W×H): 3727X1830X2068mm/146.7X72.0X81.4in
Operating weight: 3460kg/7628lb
Technical Parameters
-
Parameter ModlelBoundary dimension(L×W×H)
3727X1830X2068mm/146.7X72.0X81.4in
Operating weight3460kg/7628lb
Rated operating capacity1100kg/2427lb
Tipping load2200kg/4854lb
Breakout force curl2480kg/5472lb
Breakout force lift2430kg/5362lb
Travel speed12/18(Double speed）kph;7.5/11.2mph
Bucket capacity0.5m3/17.7ft3
-
Machine DimensionsMaximum overall height
4020mm/158.3in
Height to hinge pin3123mm/123in
Height to top of cab2068mm/81.4in
Height to bottom of level bucket2948mm/111.6in
Length without standard bucket2967mm/116.8in
Length with bucket3736mm/147.1in
Maximum dump angle43 °
Dump height2395mm/94.3in
Dump reach625mm/24.6in
Rollback angle (bucket on ground)30 °
Rollback angle at maximum height93 °
Wheelbase（Track Gauge）1188mm/46.8in
Ground237mm/9.3in
Departure angle28 °
Turning radius from center (Coupler)1344mm/52.9in
Turning radius from center (Bucket)2238mm/88.1in
Turning radius from center (Machine rear)1749mm/68.9in
Bumper overhang behind rear axle1159mm/45.6in
Width over tire(Crawler Base)1475mm/58.1in
Bucket width1830mm/72in
-
EngineMoadel
V3307-T
Type4-cylinder,water-cooled,diesel engine
Emission levelEPA Tier4F/EU StageⅤ
Power54.6/2600kW/rpm;73.2hp
Peak torque265/1500N.m/rpm;195.5lb·ft
-
Transmission systemType
Hydrostatic closed circuit
PumpVariable displacement piston pump
Motor2XRadial plunger quantitative single speed motor
-
Hydraulic systemType
Throttling system
BumpGear pump
Hydraulic flow_Standard/84/125lpm
Hydraulic flow_High flow19/28gpm
Pressure210bar/3045psi
Control valveThree joint multi-way valve
Control modeISO model of pilot control
-
Electric systemStarter
12/3.0 V/kW
Alternator rating12/80 V/A
Battery120 Ah
-
Service refill capalitiesHydraulic tank
33L/8.7gal
Fuel tank110L/29.1gal
Chain box12.5L/3.3gal
Engine oil10.7L/2.8gal
Cooling system9L/2.4gal
-
Traveling systemTire
12-16.5
Track–
