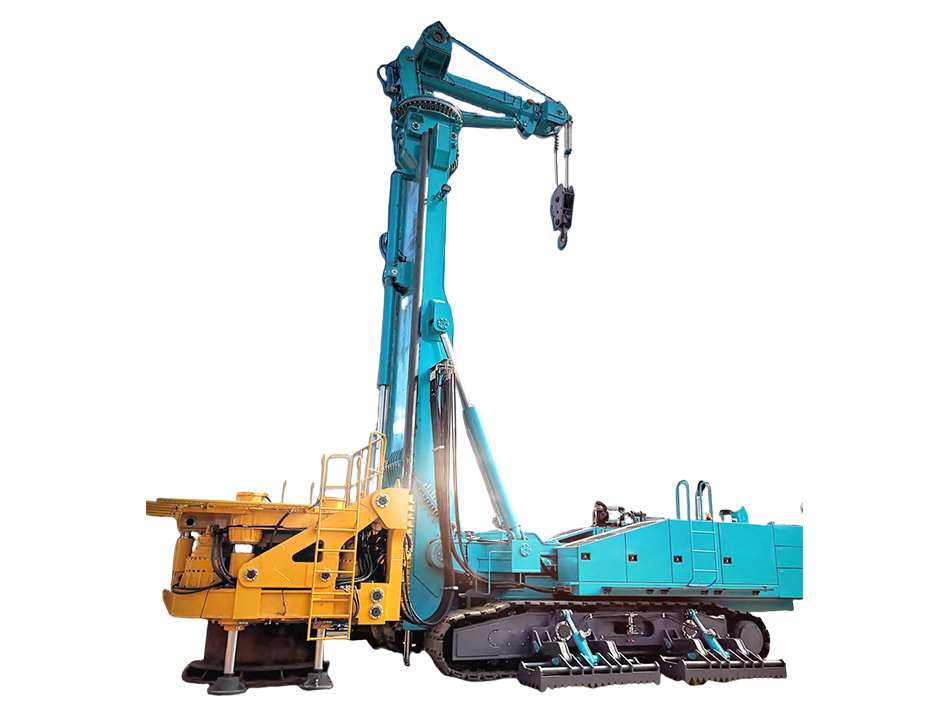

SWRC170H

Technical Parameters

• power unit
  Diameter of drill hole

  900~1700mm

  Rotary torque

  700/1400/(Instantaneouos)2000kN.m

  Rotary speed

  2.9/1.4r/min

  Lower pressure of sleeve

  670kN

  Puling force of sleeve

  4560/(Instantaneouos)5320KN

  Pressure-pulling stroke

  1200mm

  Pressure (dead weight)

  360kN

• Engine
  Model

  QSM11-C400

  Power

  298kW

  Speed

  2000r/min

• Pull-Down cylinder
  Stroke of sledge

  4000mm

  Maximum lifting force

  480kN

  Max pressure

  480kN

• Crane
  Radius
  Retracement

  2205MM

  Extension

  5435mm

  Rated load lifting capacity

  Retracement

  100kN

  Extension

  300kN

  Maximum lifting speed

  20m/min

• Chassis
  Wheel base

  5425mm

  Track Shoe Length

  6345mm

  Track Shoe Width

  860mm

  Track Shoe height

  1100mm

  Track Gauge

  2480mm

• Quality of equipment
  Total weight

  149t

  Power head not included

  113t

• Boundary dimension
  Working state of the whole machine with power head llengthx widthxheight)

  12905x5470x14645mm

  Complete machine without powver head transport state (length x width xheight)

  9300x3400x3580mm

  Power unit (length xwidth x height)

  3400x3700x2480mm
