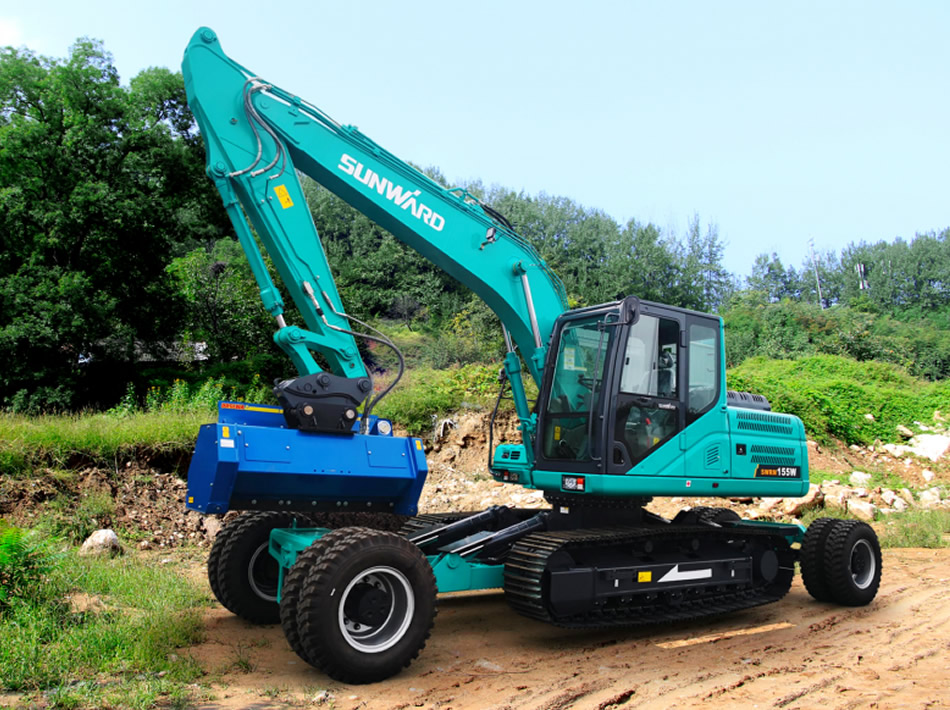

SWRM155W
Overall weight：18.68t
Max.drawbar pull：105kN
Bucket capacity: 0.6m³
Technical Parameters
-
SpecificationOperating weight
18680mm
Standard bucket capacity0.6m³
Track shoe width500
mm -
Power deviceEngine model
Diesel QSF4.5 CS4
Type4 stroke、water cooling、supercharging
Bore*Stroke102X115 mm
Displacement4.5
Rated power/ rotational speed89/2200kw/rpm
Max.torque/rotational speed570/1300n.m/rpm
Fuel tank capacity245
-
Performance and ParameterSwing speed
12.5rpm
Travel speed（track）5.3/3.2km/h
Travel speed（wheel）25/12km/h
Max.drawbar pull105kn
Max.gradeability20°
Max.bucket digging force93kn
Max.arm digging force69kn
Max.clearing crushing diameterφ250/φ120mm
Clearig cutting width1550/1000mm
Operating pressure24MPa
Work flow85~95lpm
-
Hydraulic systemMain pump
V90N75DT
Flow360 l/min
Work pressure31.4MPa
Front work device31.4(37)MPa
Travel34.3MPa
Swing25MPa
Pilot pumpDDG05A
Flow26.4 l/min
Pilot pressure3.9MPa
Hydraulic oil tank capacity150
-
Forestry Machine Mode Trasition ConditionTrack ground length
2915mm
Overall track length3650mm
Platform ground clearance1090mm
Platform swing radius2355mm
Upper structure width2530mm
Wheel gauge1942mm
Undercariage width2512mm
Track width500mm
Chassis ground clearance615mm
Cab roof height3210mm
Transition height4740mm
Transition length8540mm
wheelbase6510mm
Track ground clearance200mm
Tire diameterφ1035mm
Tire assembly width570mm
Track gauge2000mm
-
Excavator Mode Trasition ConditionTrack ground length
2915mm
Overall track length3650mm
Platform ground clearance1090mm
Platform swing radius2355
Upper structure width2530mm
Wheel gauge1942mm
Undercariage width2512mm
Track width500mm
Chassis ground clearance615mm
Cab roof height3210mm
Transition height3500mm
Transition length9105mm
wheelbase(front rear axle)6510mm
Track ground clearance200mm
Tire diameterφ1035mm
Tire assembly width570mm
Track gauge2000mm
