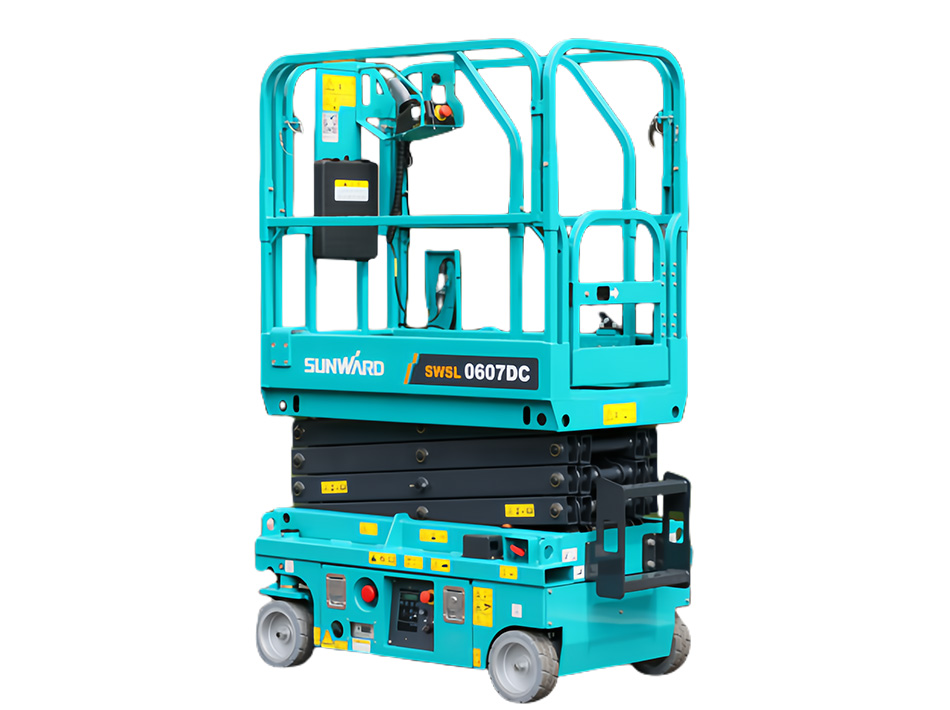

SWSL0607DC

Technical Parameters

• Dimension
  Max.operating height

  6.5m

  Max.platform height

  4.5m

  Storage platform height

  0.95m

  Operating platform length

  1.29m

  Extended dimension of platform

  0.6m

  Operating platform width

  0.7m

  Height-storage(guardrail lift)

  2.06m

  Height-storage(guardrail folded)

  1.7m

  Overall length

  1.44m

  Overall width

  0.76m

  Wheel base

  1.05m

  Ground clearance(retracted condition)

  0.06m

  Ground clearance(extended condition)

  0.017m

• Performance
  Rated load

  240kg

  Safety operation load of extended platform

  100kg

  Max.number of people the platform can hold

  2

  Travel speed(retracted condition)

  3.6km/h

  Travel speed(extended condition)

  0.8km/h

  Turning radius-inside

  0.4m

  Turning radius-outside

  1.6m

  Lifting/descending speed

  20/22s

  Max.gradeability

  30%

  Rollback angle (bucket on ground)

  30 °

  Max.allowable angle of operation

  1.5°/3°

  Control

  proportion

  Drive

  DC motor rear drive

  Multi-disc brake

  Double rear wheel

  Tyre-solid and no marks (outer diameter*width)

  230mm×80mm

• Power
  Battery

  2x12V/85Ah

  Charger

  24V/15A

  Weight

  900kg
