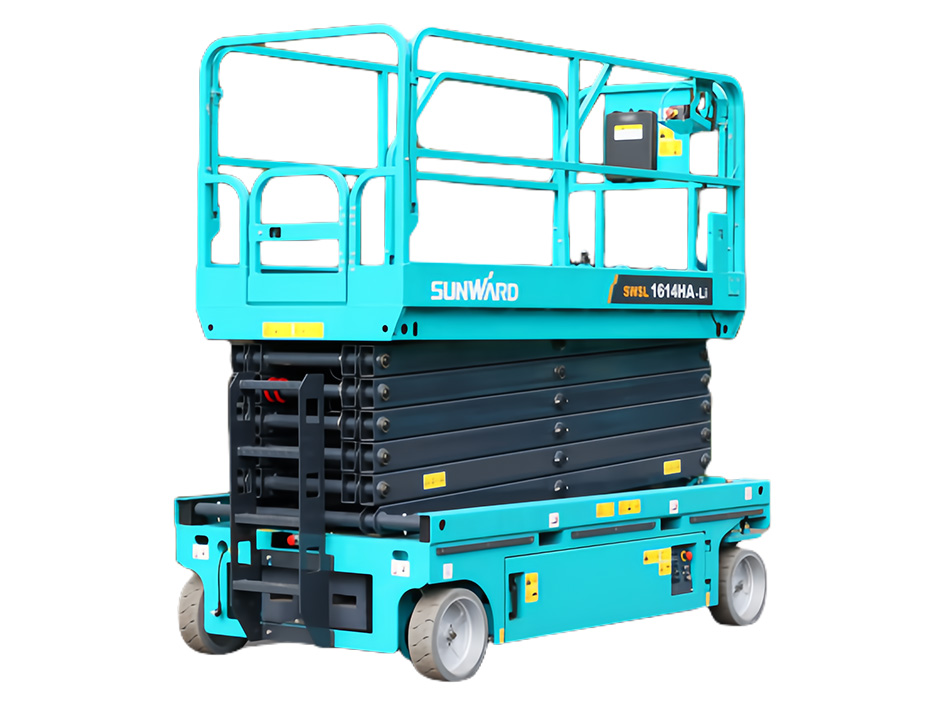

SWSL1614HA-Li
Max.operating height: 15.8m
Max.platform height: 13.8m
Technical Parameters
-
DimensionMax.operating height
15.8m
Max.platform height13.8m
Storage platform height1.53m
Operating platform length2.64m
Extended dimension of platform0.9m
Operating platform width1.15m
Height-storage(guardrail lift)2.63m
Height-storage(guardrail folded)2.1m
Overall length2.84m
Overall width1.41m
Wheel base2.24m
Ground clearance(retracted condition)0.12m
Ground clearance(extended condition)0.02m
-
PerformanceRated load
260kg
Safety operation load of extended platform113kg
Max.number of people the platform can hold2
Travel speed(retracted condition)3.2km/h
Travel speed(extended condition)0.8km/h
Turning radius-inside0m
Turning radius-outside2.5m
Lifting/descending speed88s/60s
Max.gradeability25%
Max.allowable angle of operation1.5°/3°
ControlProportion
DriveDouble front wheel
Multi-disc brakeDouble rear wheel
Tyre-solid and no marks (outer diameter*width)381mm×127mm
-
PowerBattery
4x12V/300Ah
Charger24V/30A
Weight3550kg
