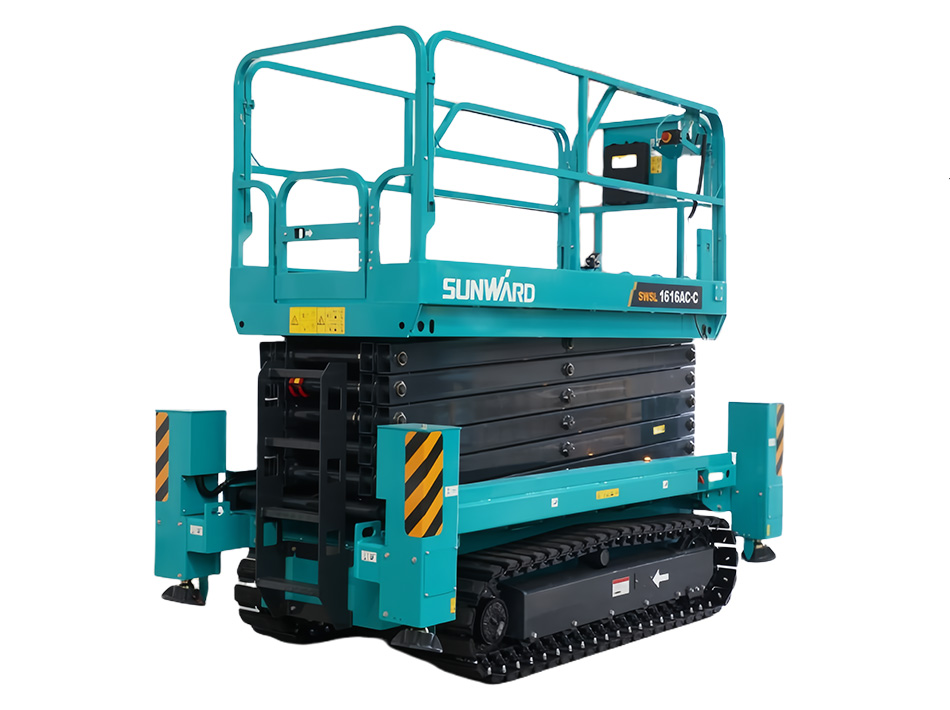

SWSL1616AC-C
Maximum working height：16m
Maximum platformheight：14m
Technical Parameters
-
DimensionMaximum working height
16m
Maximum platformheight14m
Platform height (retracted)1.6m
Platform length (retracted)2.65m
Platform length (extended)0.9m
Extended platform length1.15m
Overall height (guardrailraised)2.7m
Overall height (guardrailfolded)2.1m
Overall width3.14m
Overall length1.6m
Ground clearance0.15m
Wheel base2.88m
-
PerformanceRated load
260kg
Safe working load of extended platform113kg
Travel speed3.6
Maximum gradeability40%
Minimum turning radiusTurning in place
Steel crawler300×101.6×49
Rubber block crawler/
The Speed of decending and rising of working platform (no load)88/55s
Storage battery capacity200A·h
Working voltage48V
Charger48V/40A
Overall Weight4300kg
