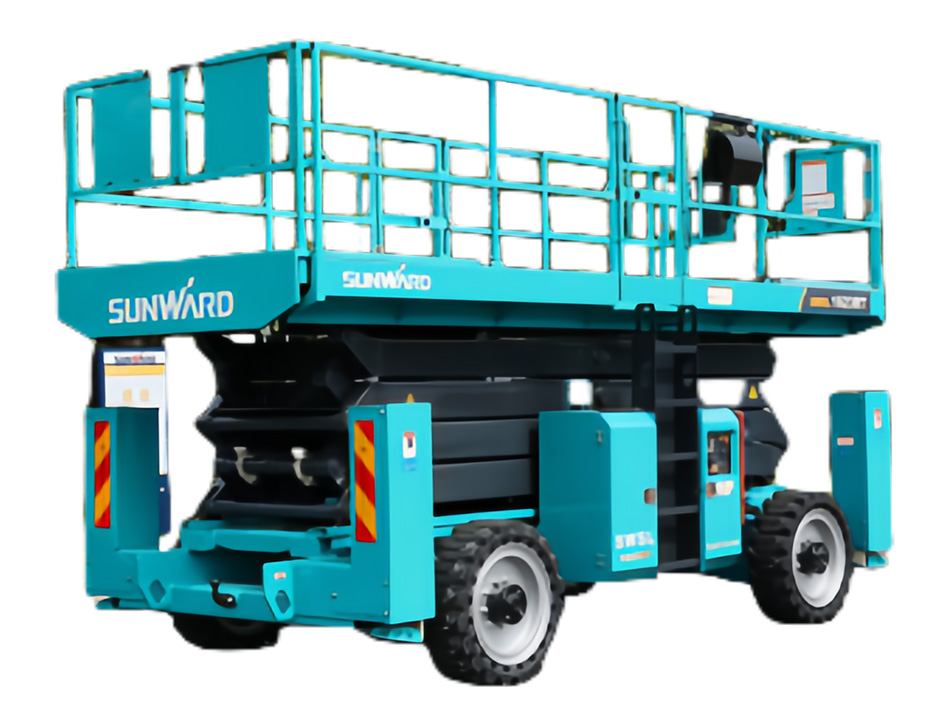

SWSL1623RT
Maximum working height：16.5m
Maximum platformheight：14.5m
Technical Parameters
-
DimensionMaximum working height
16.5m
Maximum platformheight14.5m
Platform height (retracted)1.93m
Platform length (retracted)5.33m
Platform length (extended)7.53m
Extended platform length1.2m
Platform width (outside)1.9m
Overall height (guardrailraised)3.1m
Overall height (guardrailfolded)2.27m
Overall width2.39m
Overall length5.33m
Ground clearance0.27m
Wheel base2.88m
-
PerformanceSafe working load
780kg
Safe working load of extended platform227kg
Maximum number of workers5
Travel height10m
Travel speed (retracted)7.2km/h
Travel speed (extended)0.6km/h
Maximum working angle (lateral/longitudinal)2° / 3°
Minimum turning radius (inside/outside)2.08m / 5.8m
Ascending/descending speed55sec / 68sec
Maximum gradeability40%
ControlProportional control
DriveFour wheels
Tire33X12-20
Make and model of engineKubota V2403-CR-T-EW03
Engine power47.9kW/2700rpm
Hydraulic oil tank151L
Fuel tank95L
Overall weight9200kg
相关产品
-
SWA22JE-P
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
