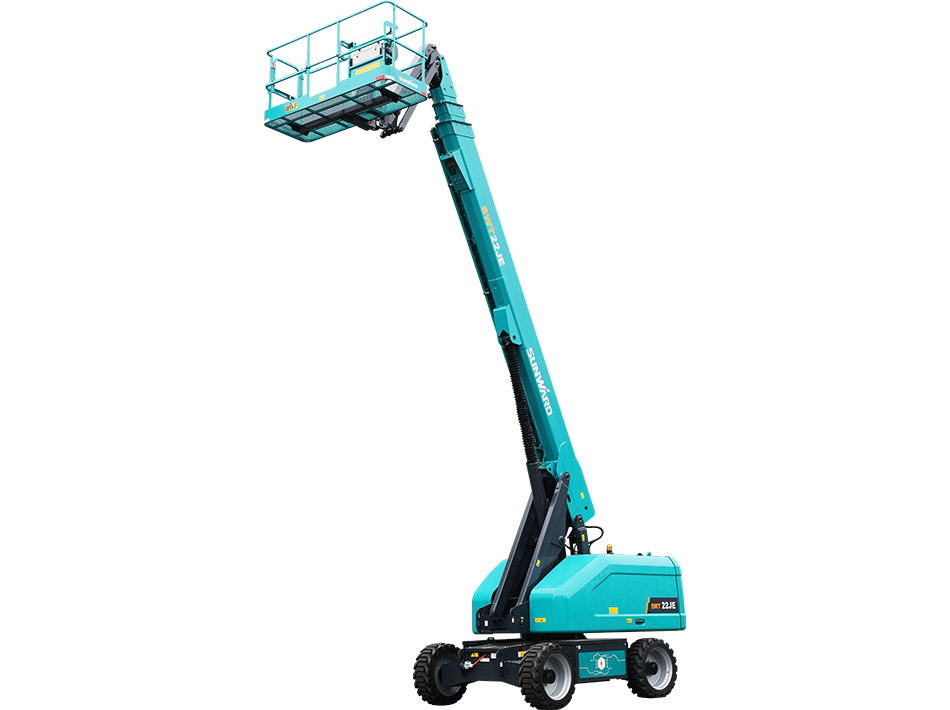

SWT22JE
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
22.5m
Max.platfrom height20.5m
Max.platform range16m
Max.operating range16.6m
Length – Stored10.14m
Length – Transport8.04m
Height – Stored2.83m
Wheelbase2.52m
Overall Vehicle Width2.49m
Ground Clearance – Middle0.38m
Min.ground clearance475 mm
Working Platform Dimensions2.44×0.91 m
Rated Load300/454 kg
Maximum Number of People3
Platform Rotation180°
Turntable Rotation360°
Turntable Tail Swing1.45m
Max.travel speed-storage4.8km/h
Max.travel speed-lifting1.1km/h
Turning Radius – Inner/Outer2.4/5.4m
Max.gradeability(counterweight upwards)45%
Max.allowable operation angle of chassis5°
Power Source83.2/460V/Ah
Max..gradeability(counterweight downwards)30%
Auxiliary Power UnitAC-52/4.2V
Hydraulic Oil Tank Capacity175L
Tyre355/55-24
Overall Machine Weight13050kg
