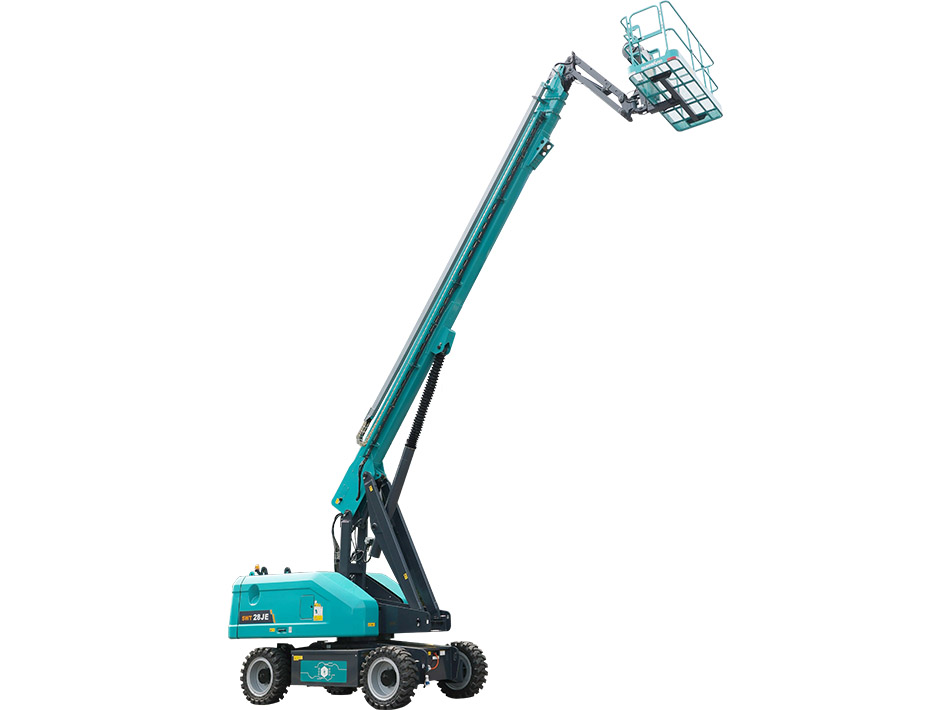

SWT28JE
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
28.2m
Max.platfrom height26.2m
Max.platform range20m
Max.operating range21.1m
Length – Stored10.14m
Length – Transport12.5m
Height – Stored2.88m
Wheelbase3m
Overall Vehicle Width2.49m
Ground Clearance – Middle0.34m
Operating platform dimension2.44×0.91 m
Rated Load300/454 kg
Maximum Number of People3
Platform Rotation180°
Turntable Rotation360°
Turntable Tail Swing1.6m
Max.travel speed-storage4.8km/h
Max.travel speed-lifting1.1km/h
Turning Radius – Inner/Outer3.6/6.8m
Max.gradeability(counterweight upwards)45%
Max.allowable operation angle of chassis5°
Power Source83.2/560V/Ah
Max..gradeability(counterweight downwards)30%
Auxiliary Power UnitAC-52/5.2V
Hydraulic Oil Tank Capacity170L
Tyre385/65-24
Overall Machine Weight18620kg
