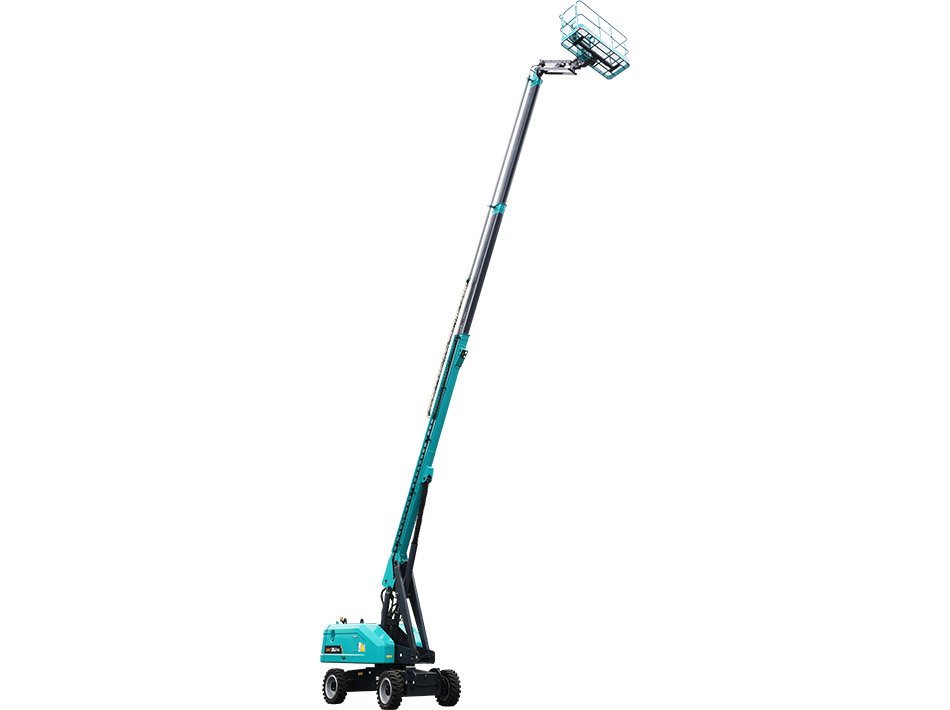

SWT28J
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
28.2m
Max.platfrom height26.2m
Max.platform range21.2m
Max.operating range21.8m
Length – Stored12.5m
Length – Transport10.4m
Height – Stored2.88m
Wheelbase3m
Overall Vehicle Width2.49m
Ground Clearance – Middle0.34m
Operating platform dimension2.44×0.91 m
Rated Load250/340 kg
Maximum Number of People3
Platform Rotation180°
Turntable Rotation360°
Turntable Tail Swing1.6m
Max.travel speed-storage5.8km/h
Max.travel speed-lifting1.1km/h
Turning Radius – Inner/Outer3.6/6.8m
Max.gradeability(counterweight upwards)45%
Max.allowable operation angle of chassis4°
Power SourceYCF3075-T302
Max..gradeability(counterweight downwards)30%
Engine power and speed55.8@2300kW@rpm
Drive motor12V
Hydrauilc oil tank capacity175L
Fuel tank capacity150L
Tyre385/65-24
Overall Machine Weight18200kg
