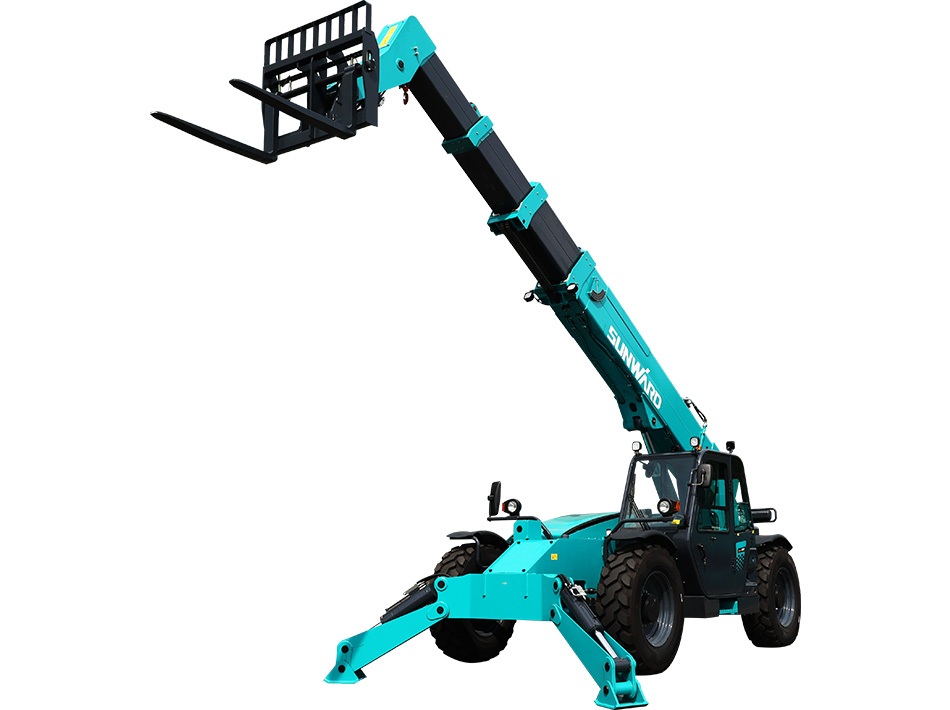

SWTH4517
Engine Power: 97kW
Machine Weight: 15100kg
Technical Parameters
-
SizeA Length to pallet fork
6120mm
B Width2560mm
C Height2540mm
D Wheel base3490mm
E Ground clearance457mm
F Wheel tread2160mm
G Cab width940mm
H Length to front wheel54120mm
-
Basic parametersOverall dimensions (LxWxH)
7340mm*2560mm*2540mm
Overall weight (no-load)15100kg
Rated bearing capacity4536kg
Maximum lifting height17.06m
Loading capacity at maximum extension length2268kg
Maximum extension length13m
Loading capacity at maximum extension length1361kg
Frame leveling angle10
Ground clearance457mm
Turning radius (outside)4.3m
Traction force111kN
-
Actuation timeNo-load lifting time
17S
No-load descending time14S
No-load full retraction time17S
No-load full extension time19S
-
Power trainDrive mode
hydrodynamic driven
Gear stage (forward/backward)4/3
Maximum travel speed32km/h
Gradeability55%
-
EngineBrand
Cummins
ModelOSF3.8L
Power97kW
Emission Standard/
Maximum torque4880N.m
Oil injection methodElectronic injection
Cooling methodWater cooling
-
Hydualic PumpBrand
HENGLI
ModelPlunger pumpHP5V76
Country of OriginCHINA
Capacity76
-
Travel DeviceManufacturer
DANA
Model223/212HY
Country of OriginITALY
-
TransmissionManufacturer
ZF
Model4WG98
Country of OriginGERMANY
-
CabinROPS, FOPS
WITH
Rear View CameraWITH
MonitorWITH
Rear View Mirror, Qty1
RadioWITH
AirconditionerWITH
-
Boom ArrangementTyres
2
Nos. of Boom Cylinders1
-
TyresFront
14.00-24
ManufacturerQIANJIN
Country of OriginCHINA
Rear14.00-24
ManufacturerQIANJIN
Country of OriginCHINE
Drive4*4
-
OutriggersFront (STD / Option)
EQUIPPED
Rear (STD/Option)WITHOUT
-
Coupling DeviceManufacturer
NA
Standard/OptionalStandard
Suitable ForAll optional attachments
-
AttachmentsStandard
Fork
OptionsBucket, Hanging Bucket, Clamping Bucket, Lifting Hook
-
System capacityHydraulic oil
170L
Fuel oil155L
Engine oil12L
Cooling Liquid12L
Pallet fork1200mmx120mmx50mm
