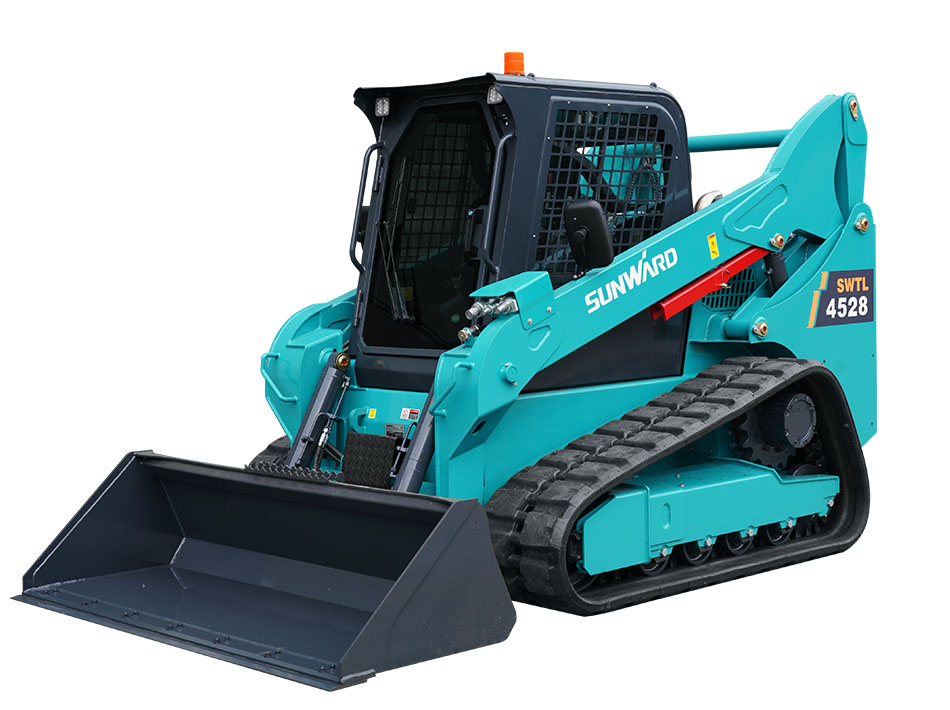

SWTL4528
Boundary dimension(L×W×H): 3735X2015X2071mm/147.6X79.3X81.5in
Operating weight: 4650kg/10251lb
Technical Parameters
-
Parameter ModlelBoundary dimension(L×W×H)
3735X2015X2071mm/147.6X79.3X81.5in
Operating weight4650kg/10251lb
Rated operating capacity1200kg/2648lb
Tipping load3430kg/7568lb
Breakout force curl3450kg/7613lb
Breakout force lift2600kg/5737lb
Travel speed12/18(Double speed）kph;7.5/11.2mph
Bucket capacity0.6m3/21.2ft3
-
Machine DimensionsMaximum overall height
4110mm/161.8in
Height to hinge pin3217mm/126.7in
Height to top of cab2071mm/81.5in
Height to bottom of level bucket3048mm/120in
Length without standard bucket2969mm/116.9in
Length with bucket3735mm/147in
Maximum dump angle41 °
Dump height2497mm/98.3in
Dump reach948mm/37.3in
Rollback angle (bucket on ground)30 °
Rollback angle at maximum height89 °
Wheelbase（Track Gauge）1600mm/63in
Ground228mm/9in
Departure angle34 °
Turning radius from center (Coupler)1424mm/56.1in
Turning radius from center (Bucket)2322mm/91.4in
Turning radius from center (Machine rear)1701mm/67in
Bumper overhang behind rear axle855mm/33.7in
Width over tire(Crawler Base)1500mm/59.1in
Bucket width2015mm/79.3in
-
EngineMoadel
V3307-T
Type4-cylinder,water-cooled,diesel engine
Emission levelGB Ⅲ
Power54.6/2600kW/rpm;73.2hp
Peak torque265/1600N.m/rpm;195.5lb·ft
-
Transmission systemType
Hydrostatic closed circuit
PumpVariable displacement piston pump
Motor2XRadial plunger quantitative single speed motor
-
Hydraulic systemType
Throttling system
BumpGear pump
Hydraulic flow_Standard/89/130lpm
Hydraulic flow_High flow20/29gpm
Pressure210bar/3045psi
Control valveThree joint multi-way valve
Control modeISO model of pilot control
-
Electric systemStarter
12/3.0 V/kW
Alternator rating12/80 V/A
Battery120 Ah
-
Service refill capalitiesHydraulic tank
34L/9gal
Fuel tank95L/25.1gal
Chain box–
Engine oil10.7L/2.8gal
Cooling system9L/2.4gal
-
Traveling systemTire
–
Track450
