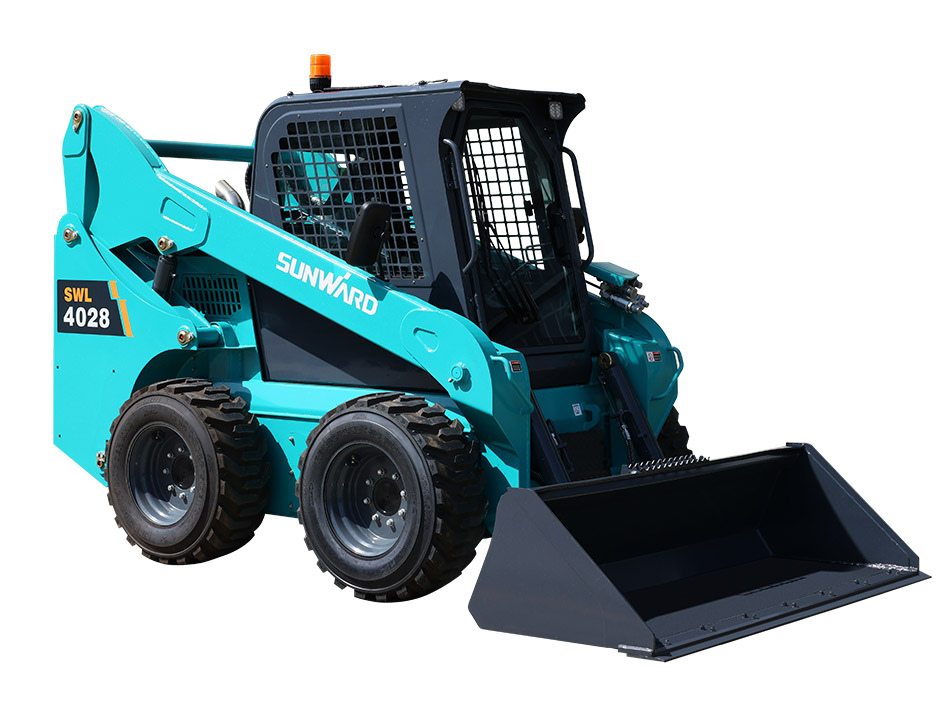

SWL4028
Boundary dimension(L×W×H): 3735X2015X2068mm/147X79.3X81.4in
Operating weight: 3700kg/8157lb
Technical Parameters
-
Parameter ModlelBoundary dimension(L×W×H)
3735X2015X2068mm/147X79.3X81.4in
Operating weight3700kg/8157lb
Rated operating capacity1300kg/2868lb
Tipping load2600kg/5737lb
Breakout force curl3450kg/7613lb
Breakout force lift2600kg/5737lb
Travel speed12/18(Double speed）kph;7.5/11.2mph
Bucket capacity0.6m3/21.2ft3
-
Machine DimensionsMaximum overall height
4110mm/161.8in
Height to hinge pin3214mm/126.5in
Height to top of cab2068mm/81.4in
Height to bottom of level bucket3044mm/119.8in
Length without standard bucket2984mm/117.5in
Length with bucket3735mm/147in
Maximum dump angle41 °
Dump height2493mm/98.1in
Dump reach915mm/36in
Rollback angle (bucket on ground)30 °
Rollback angle at maximum height89 °
Wheelbase（Track Gauge）1188mm/46.8in
Ground237mm/9.3in
Departure angle28 °
Turning radius from center (Coupler)1328mm/52.3in
Turning radius from center (Bucket)2254mm/88.7in
Turning radius from center (Machine rear)1751mm/68.9in
Bumper overhang behind rear axle1127mm/44.4in
Width over tire(Crawler Base)1474mm/58in
Bucket width2015mm/79.3in
-
EngineMoadel
V3307-T
Type4-cylinder,water-cooled,diesel engine
Emission levelGB Ⅲ
Power54.6/2600kW/rpm;73.2hp
Peak torque265/1600N.m/rpm;195.5lb·ft
-
Transmission systemType
Hydrostatic closed circuit
PumpVariable displacement piston pump
Motor2XRadial plunger quantitative single speed motor
-
Hydraulic systemType
Throttling system
BumpGear pump
Hydraulic flow_Standard/89/130lpm
Hydraulic flow_High flow20/29gpm
Pressure210bar/3045psi
Control valveThree joint multi-way valve
Control modeISO model of pilot control
-
Electric systemStarter
12/3.0 V/kW
Alternator rating12/80 V/A
Battery120 Ah
-
Service refill capalitiesHydraulic tank
34L/9gal
Fuel tank95L/25.1gal
Chain box12.5L/3.3gal
Engine oil10.7L/2.8gal
Cooling system9L/2.4gal
-
Traveling systemTire
12-16.5
Track–
