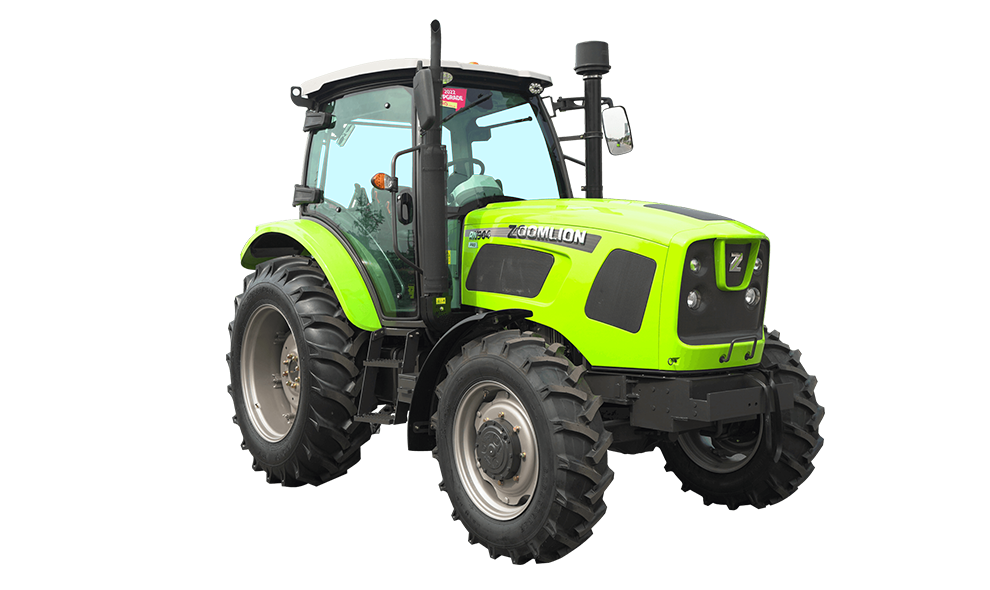

RN904-1104 Series WHEELED TRACTOR
90/110 HP Four-cylinder high-pressure common-rail engine
Fuel atomization effect is good, more fuel-efficient
16F+8R Meshing sleeve gearshift
Optional paddy tyre
435mm ground clearance
Hydraulic-driven steering system
The rear track is adjustable
-
16F+8R Transmission box
-
Two-speed power output options
-
Strong pressure lifter, with single and double action switch, CAT II suspension system
-
Full hydraulic steering system with independent oil circuit
| Model | Unit | RN904Pro/RN1104Pro |
| Overall dimensions (L×W×H) | mm | 4600×2095×2950 |
| Wheelbase | mm | 2350 |
| Min. operating mass | kg | 4300 |
| Min. ground clearance | mm | 435 |
| Engine emission | / | National Ⅲ |
| Calibration power | kW | 66/81 |
| Fuel consumption rate | g/kW•h | ≤250 |
| Clutch type | / | Dual action of dry type and independent control |
| Number of gears | / | 16F+8R meshing sleeve shift |
| Brake mode | / | Wet type and disc type |
| Tire specification | / | 12.4-24/16.9-34 |
| (front wheel/rear wheel) | ||
| Type of hydraulic lifting system | / | Semi-split lifter |
| Max. pull force | kN | ≥25 |
| Tillage depth control method | / | Position adjustment and floating control |
| Hydraulic-output multiway valve | / | 3-group hydraulic output |
| Maximum flow of hydraulic output | L/min | 64 |
| Hydraulic hitching mechanism | / | Three-point rear hitching: TypeII. |
| Calibration traction force | kN | 34.5/35.5 |
| PTO power output | kW | 56.3/69 |
| PTO speed | r/min | 540/1000 |
| Safety shelf or cab | / | A/C cab |
