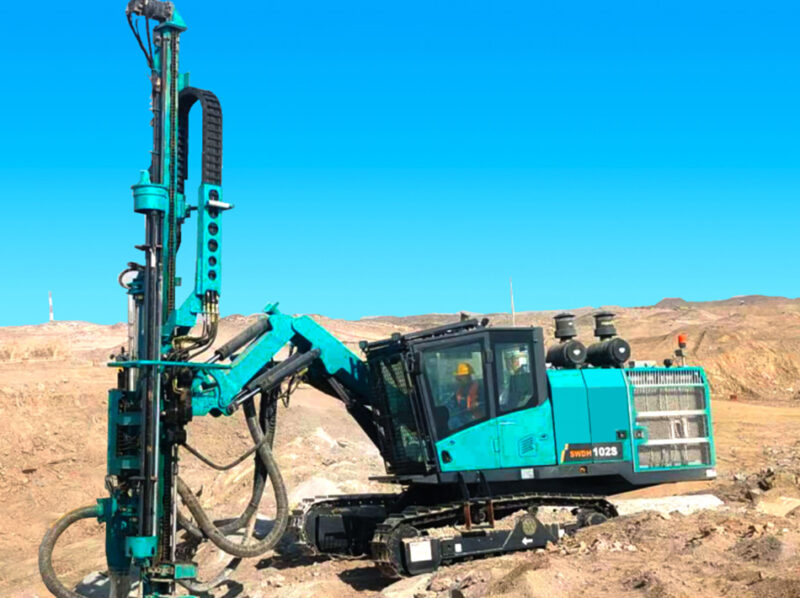

SWDH102S
Hole diameter: 76-115mm
Rod: T45/T51
Hole diameter : 76-115mmRod : T45/T51Tube length : 3660mm -

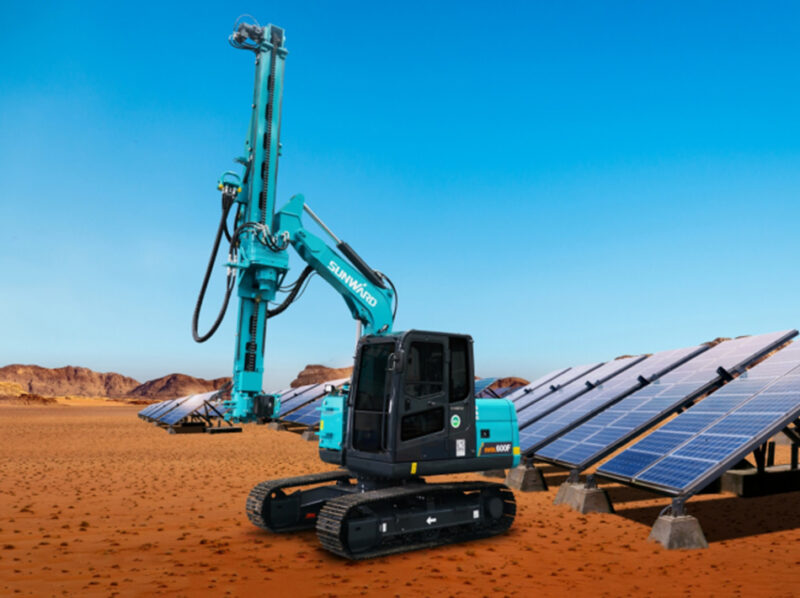

SWDL600F
Working diameter: 76~114mm
Height of the helical pile: 3.6m
Working diameter : 76~114mmHeight of the helical pile : 3.6mHelical drilling diameter : 115~300mm -

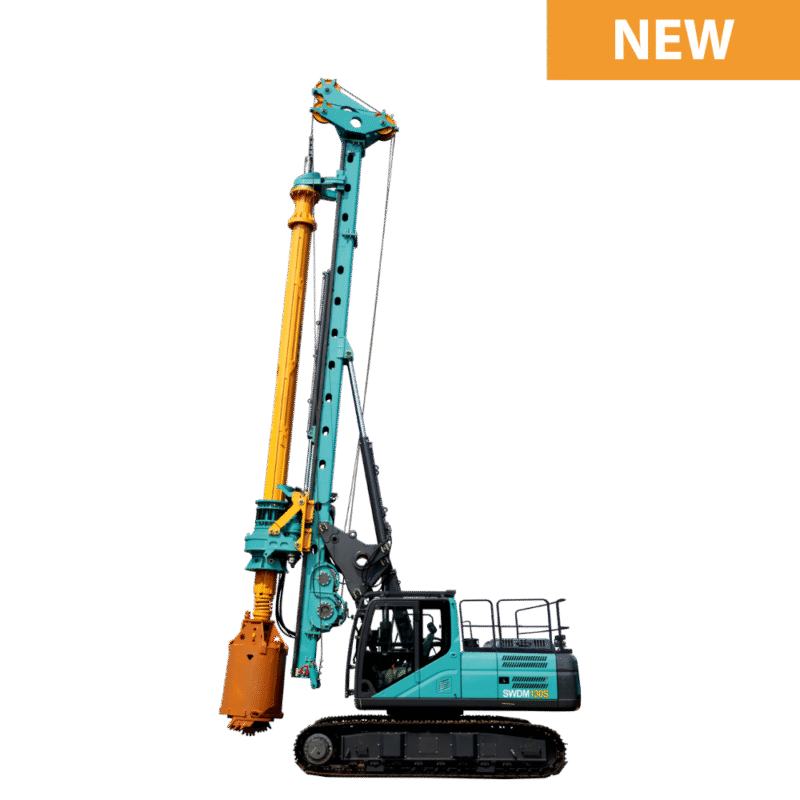

SWDM 130S
Introducing the SWDM130S rotary drilling rig, the “Electric Tower Drilling Rig,” meticulously designed for electric tower construction. Crafted for versatility, it conquers diverse terrains, including challenging mountainous roads, thanks to a specialized chassis and powerful driving force. This rig’s small turning radius ensures exceptional mobility on narrow mountain roads. It excels in large diameter hole construction, low headroom construction, and lifting reinforcing steel cages over extended distances using the auxiliary winch. Swiftly transition between drilling and transport with a single mast control button for unmatched efficiency and speed.
Emission rating : EU Stage VOperating Weight : 37 500 kgPower output : 129 kW -
SWDM130
Max. Pile Diameter：1300mm/2000mm
Operating Weight：37.5t
Rated Power：124kW@2050rpm
Max. Pile Diameter : 1300mm/2000mmOperating Weight : 37.5tRated Power : 124kW@2050rpm -

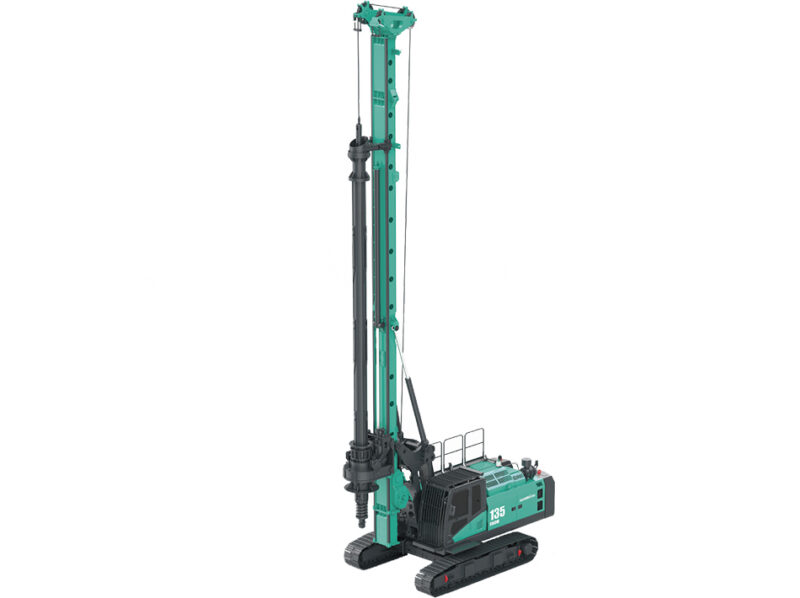

SWDM135
Max. Drilling Diameter: 1500mm (CCS)
Max. Drilling Depth: 49 M
Max.Torque: 135 Kn-M
Max.Drilling Diameter : 1500mm (ccs)Max.drilling depth : 49 mMax. Torque : 135 kN-m -
SWDM160H2
Max. Pile Diameter：1500mm
Operating Weight：49t
Rated Power：194kW@2200rpm
Max. Pile Diameter : 1500mmMax. Pile Depth : 56/44mRated Power : 194@2200kW@rpm -
SWDM160W
Max.Drilling Diameter：1300mm
Operating Weight：48t
Rated Power：186kW2000rpm
Max. diameter : 1200mmMax. Pile Depth : 56/44mRated Power : 194 kW / 2200 rpm -

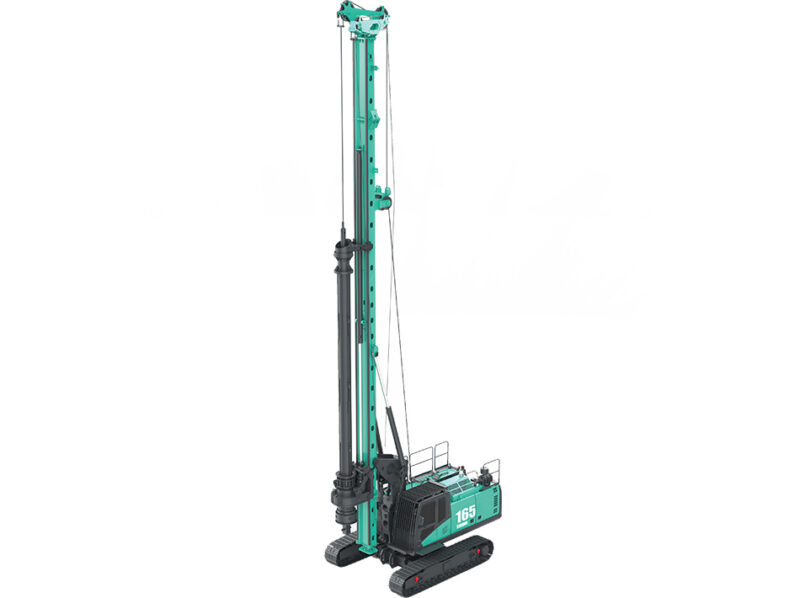

SWDM165
Max. Drilling Diameter: 1500/1300 Mm(CCS/WCS)
Max. Drilling Depth: 60m
Max.Torque: 165 Knm
Max.Drilling Diameter : 1500/1300 mm(CCS/WCS)Max.drilling depth : 60mMax. Torque : 165 kNm -
SWDM165W
Operating weight: 47t
Engine power: 194kW/2200rpm
Max. drilling diameter: 1300mm
Operating Weight : 47tEngine power : 194kW/2200rpmMax.Drilling Diameter : 1300mm -
SWDM200H
Max.Drilling Diameter: 1800mm
Operating Weight: 65t
Rated Power: 194kW@2200rpm
Max.Drilling Diameter : 1800mmOperating Weight : 65tMax.drilling depth : 64m/51m -

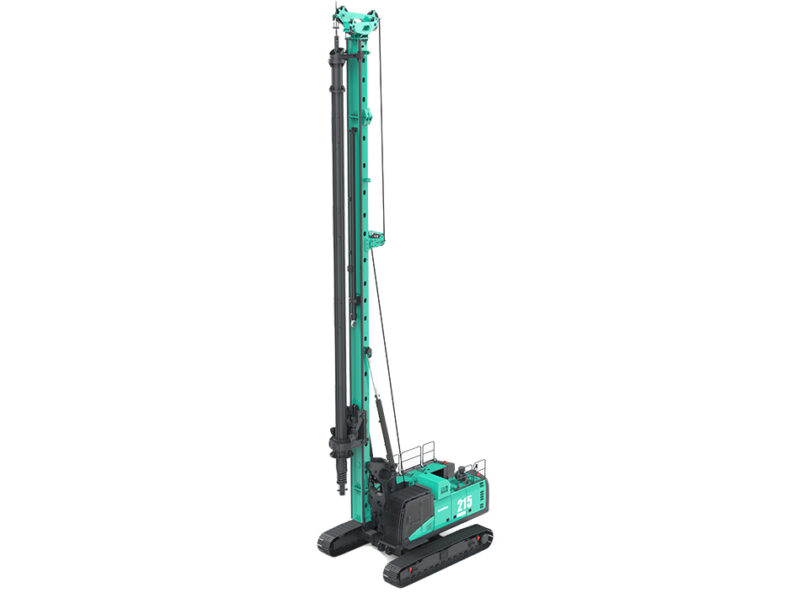

SWDM215
Max. Drilling Diameter: 1500mm
Max. Drilling Depth: 72 M
Max.Torque: 215 Kn.M
Max.Drilling Diameter : 1500mmMax.drilling depth : 72 mMax. Torque : 215 kN.m
