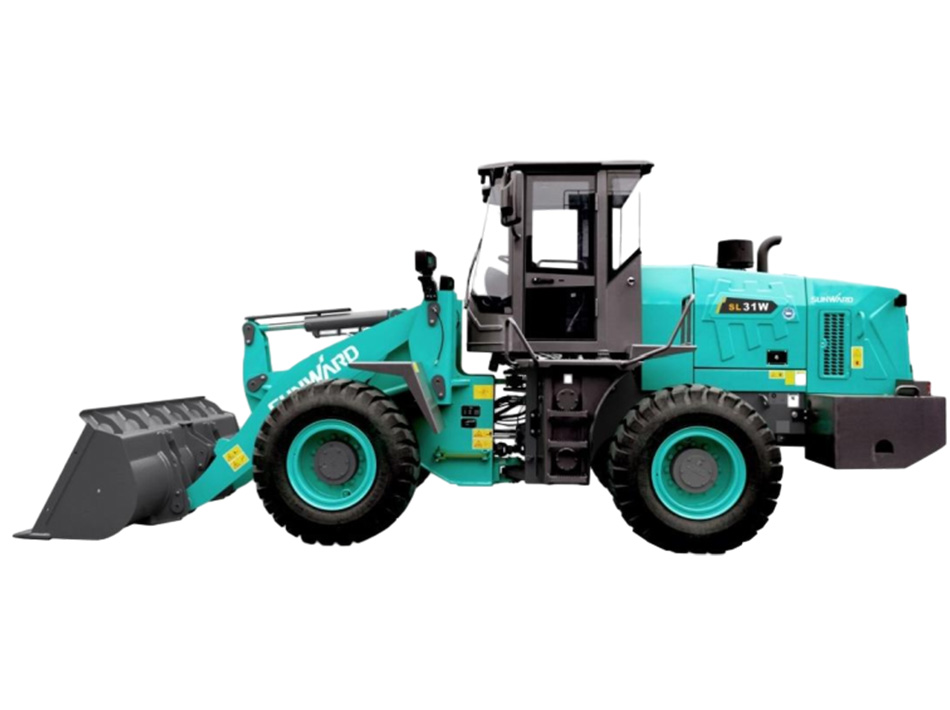

SL31W

Technical Parameters

• Overall machine parameters
  L*W*H

  7200（7450）X2500X3180 mm

  Standard bucket capacity

  1.7 m³

  Digging force

  105（95）±3 KN

  Drawbar pull

  97±3 KN

  Rated load capacity

  3000 kg

  Operating weight

  10300(10500)±300 kg

• Parameter
  Load level

  Large wheeled loader

  Dumping type

  Standard/High dump

  Height(during bucket at the maximum lift position)

  4474/4766 mm

  Height of the lower pin of the boom from the ground

  3710/4064 mm

  Dump height-45°dump angle

  2905/3250 mm

  Dump reach-45°dump angle

  1095/1002 mm

  Bukcet angle-trasport position

  46.3/46.6 °

  Bukcet angle-off-ground position

  40/40.9 °

  Digging depth

  30-40/30-40 mm

  Bucket angle-Max.lift position

  50.7/47 °

  Bucket dump height

  46.6/45 °

  Transport height

  400/400 mm

  Min.ground clearance

  345/345 mm

  Front axle-hinge dimension of front and rear vehicle frame

  1425/1425 mm

  Wheel base

  2850/2850 mm

  Overall length

  7200/7450 mm

  Max.gradeability

  27/27 °

  Overall height

  3180/3180 mm

  Overall width-Bukcet

  2500/2500 mm

  Min.turning radius-Bukcet

  6190/6280 mm

  Min.turning radius-Outside of tyre

  5675/5675 mm

  Steering angle(R/L)

  35/35 °

  Wheel thread

  1850/1850 mm

  Distance of tyre outside

  2320/2320 mm

• Engine
  Emission standard

  China Ⅱ

  Rated power/speed

  92/2200 KW/rpm

  Max.torque/speed

  500/1400-1600 N.m/rpm

  Number of cylinders/Displacement

  6/6.75 L

  Generator

  70 Amp

  Battery

  2-24V/105Ah Ah

  Starting motor

  24V/6kw V

• Transmission system
  Gearbox form

  Fixed shaft power gear shift gearbox

  Gear shift form

  Flexible shaft control gear shift

  Torque convertor form

  Single level,Single turbin，Three elements

  Drive axle

  24V/6kw V

  Starting motor

  Fixed front axle&Swing rear axle

  Rear axle Swing angle

  ±10°

  Main reduction

  Sprial bevel gear,One-level reduction

  Hub reduction

  Planetary transmission reduction

  Tyre specification

  17.5–25 L-3 12PR TT

  Travel speed-forwards

  7/12/24/36

  Hub reduction

  Planetary transmission reduction

  Travel speed-backwards

  8.5/28

• Brake system
  Travel brake

  Single pipe line clamp disc four wheel dry type

  Air pressure

  0.7-0.78MPa

  Parking brake

  Flexible clamp disc brake

  Emergency brake

  Flexible clamp disc brake

• Steering syetem
  Form

  Full hydraulic load sensor steering

  Gear pump

  246L/min.2200prm

  System pressure

  14 Mpa

  Steering cylinder form

  Two-cylinder drive

  Steering angle

  ±35°

• Work hydrauilc system
  Form

  Mechanical flexible shsaft control

  Flow

  246L/min.2200prm

  Distribution valve

  2-linkage valve

  System pressure

  16 Mpa

  Sum of the three items

  10.5 s

• Oil tank capacity
  Fuel

  200 L

  Hydraulic oil

  165/170 L

  Engine oil

  14 L

  Gearbox oil

  36 L

  Front bridge/Rear bridge

  18.5/18.5 L

• Standard configuration
  China Ⅱ

  Lonking gearbox

  Flexible shaft control gear shift

  Longking dry-type drive axle

  Mechanical flexible shaft operation control

  Flexible clamp disc brake

  ROPS&FOPS

  Detachable cab

  Combination instrument

  Fan heater
• Optional configuration
  China Ⅲ

  Cold start

  Pilot operation control

  High-dump boom

  Oil-bath air filter

  Radial tyre

  Alarm light

  The third linkage piping

  Slide window of cab

  Reverse image

  Cold&Warm aircon

  Radio/MP3

  Log grapple fork（Single upper,double lower）

  Log grapple fork（double upper and lower）

  Grass grapple fork

  Goods fork

  Electric-heating rear window

  Lockable oil tank cap

  Bucket（2.0m³）

  Enlarged bucketEnlarged bucket（2.3m³）

  Coal bucket（2.5m³）

  Bucket（With 3 service blades）

  Side-dumping bucket

  Quick-hitch device

  Quick-hitch bucket（1.7m³）

  Quick-hitch snow removal bucket

  Normal detachable cab
