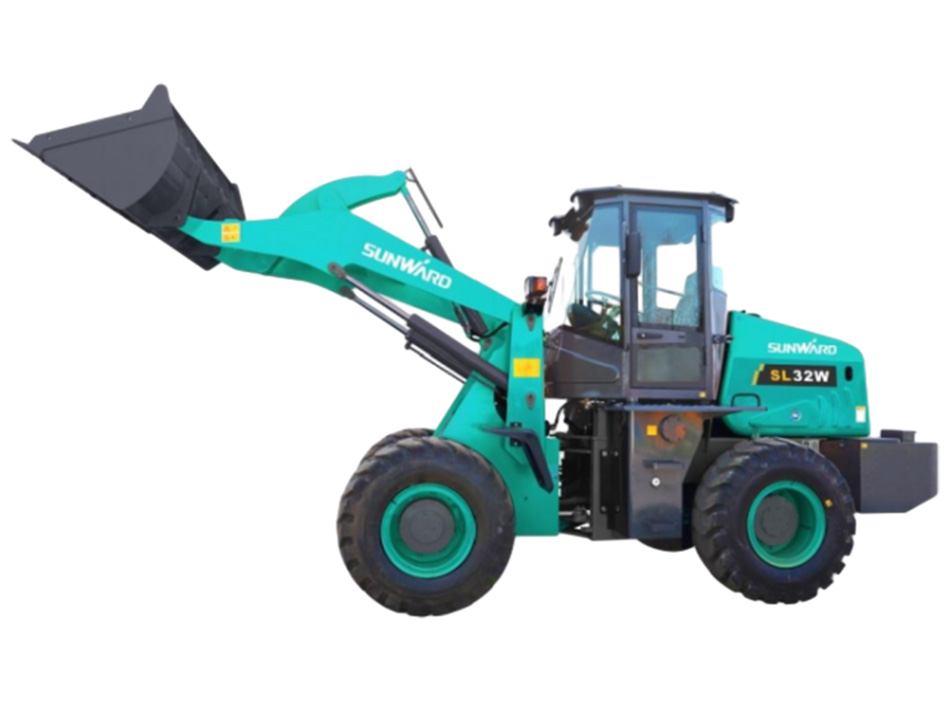

SL32W

Technical Parameters

• Overall machine parameters
  L*W*H

  6920*2500*2950 mm

  Standard bucket capacity

  1.5 m³

  Digging force

  43 KN

  Drawbar pull

  52 KN

  Rated load capacity

  1200 kg

  Operating weight

  5760 kg

• Parameter
  Load level

  Mini wheeled loader

  Dumping type

  4.3m High dump

  Height(during bucket at the maximum lift position)

  5977 mm

  Height of the lower pin of the boom from the ground

  4900 mm

  Dump height-45°dump angle

  4200 mm

  Dump reach-45°dump angle

  1066 mm

  Bukcet angle-trasport position

  48 °

  Bukcet angle-off-ground position

  40 °

  Digging depth

  50 mm

  Bucket angle-Max.lift position

  52 °

  Bucket dump height

  35 °

  Transport height

  400 mm

  Min.ground clearance

  275 mm

  Front axle-hinge dimension of front and rear vehicle frame

  1063 mm

  Wheel base

  2370 mm

  Overall length

  6920 mm

  Max.gradeability

  25 °

  Overall height

  2950 mm

  Overall width-Bukcet

  2500 mm

  Min.turning radius-Bukcet

  6500 mm

  Min.turning radius-Outside of tyre

  6090 mm

  Steering angle(R/L)

  32 °

  Wheel thread

  1675 mm

  Distance of tyre outside

  2085 mm

• Engine
  Emission standard

  China Ⅲ

  Rated power/speed

  60/2400 KW/rpm

  Max.torque/speed

  300/1600~1800 N.m/rpm

  Number of cylinders/Displacement

  4/3.6 L

  Generator

  70 Amp

  Battery

  2-24V/80Ah

  Starting motor

  24 V

• Transmission system
  Gearbox form

  Fixed-shaft hydrodynamic gearshift straight tooth normal mesh type

  Gear shift form

  Flexible shaft operation control

  Gearbox pressure

  1.1-1.5 Mpa

  Torque convertor form

  Three elements

  Drive axle

  Fixed front axle&Swing rear axle

  Rear axle Swing angle

  ±10°

  Main reduction

  Sprial bevel gear,One-level reduction

  Hub reduction

  Column gear planetary transmission

  Tyre specification

  16/70-20

  Travel speed-forwards

  20

  Travel speed-backwards

  20

• Brake system
  Travel brake

  Caliper disc four-wheel brakes

  Air pressure

  0.7-0.78MPa

  Parking brake

  Flexible control clamp disc brake

  Emergency brake

  Flexible control clamp disc brake

• Steering syetem
  Form

  Full hydraulic load sensor steering

  Gear pump

  150L/min.2400prm

  System pressure

  14 Mpa

  Steering cylinder form

  Two-cylinder drive

  Steering angle

  ±32°

• Work hydrauilc system
  Form

  Mechanical control

  Flow

  – L/min,prm

  Distribution valve

  2-linkage valve

  System pressure

  16 Mpa

  Sum of the three items

  8.8 s

• Oil tank capacity
  Fuel

  90 L

  Hydraulic oil

  60 L

  Engine oil

  7.5 L

  Gearbox oil

  19 L

• Standard configuration
  China Ⅲ

  Lonking gearbox

  Flexible shaft operation control

  Longking dry-type drive axle

  Pilot operation control

  Flexible clamp disc brake

  ROPS&FOPS

  Detachable cab

  Mechanical instrument

  Cold&Warm aircon

  Cold start
• Optional configuration
  Mechanical flexible shaft operation control

  Standard boom

  Oil-bath air filter

  Solid tyre

  The third linkage piping

  Slide window of cab

  Alarm light

  Reverse image

  Fan heater
  Radio/MP3

  Log grapple fork

  Grass grapple fork

  Goods fork

  Bucket（1m³、1.8m³）

  Bucket（With service blade）

  Quick-hitch device

  Quick-hitch bucket
