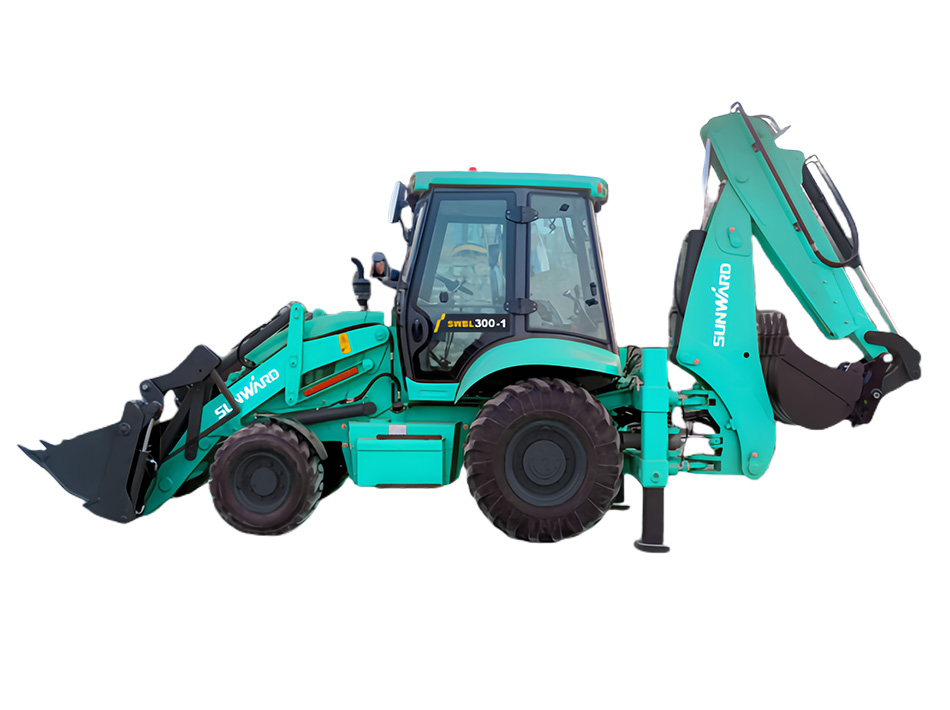

SWBL300-1

Technical Parameters

• Overall dimensions
  Operating weight

  8600KG

  Overall dimension(L×W×H)

  6130×2480×3465mm

  Wheel base

  2280±10mm

  Wheel tread

  1890(F)/1730(R)mm

  Ground clearance

  400mm

• Performance
  Load bucket capacity

  1m³

  Load breakout force

  47KN

  Load lifting capacity

  2500KG

  Bucket unloading height

  2807

  Bucket unloading distance

  801±20mm

  Digging depth

  56mm

  Backhoe bucket capacity

  0.3m³

  Backhoe digging force

  49.8KN

  Backhoe swing angle

  180°

  Bucket unloading height

  3813mm

  Max.Digging depth

  5346mm

  Max.Traction force

  82KN

• Engine
  Model

  Weichai WP4G110E220

  Type

  Inline,direct injection,water-cooled,turbocharged,four-stroke

  Cylinders-Inner diameter×stroke

  4-105×130

  Rated power

  82KW

  Rated speed

  2200r/min

  Min.fuel consumption

  213.4g/kw.h

  Max.torque

  430N.m

  Displacement

  4.5L

• System pressure
  Loading hydraulic system

  20Mpa

  Excavation hydraulic system

  20Mpa

  Steering hydraulic system

  16MPa

• Steering system
  Type

  Hydraulic steering

  Steering gear model

  BZZ-250

  Pump displacement

  63ml/r

  Pump model

  CBG2063

  Steering angle

  ±96°

  Min.Turning radius

  5950mm

• Driving axle
  Model

  26.22-190028.43M-1654

  Rated front axle load

  22.5T

  Rated rear axle load

  18.75T

• Transmission system
  Model

  TLB1 – 4WD

  Gears

  4F、4R

  Cooling mode

  Pressure oil circulation

• Tyres
  Front/Rear model

  14-17.5/19.5-24

  Front tyre pressure

  0.4Mpa

  Rear tyre pressure

  0.35Mpa

  Max.travel speed

  39Km/h

• Brake system
  Traveling brake

  Wet internal self-regulatic self-balance type

  Parking brake

  Manual brake
