SWBL300
21 8 月, 2025
SWBL300-1
21 8 月, 2025

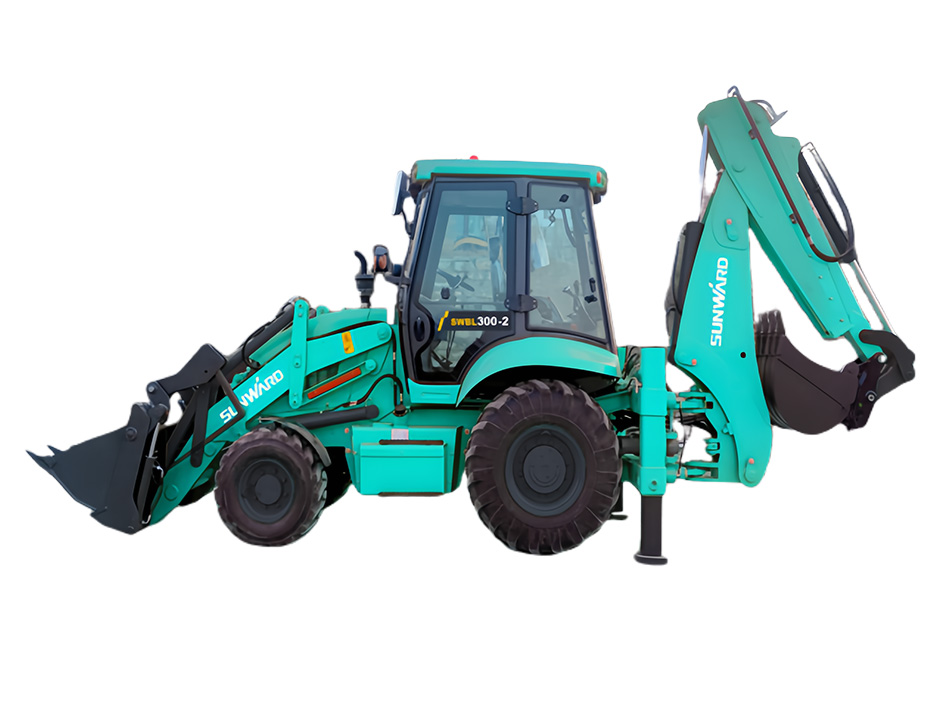

SWBL300-2
Operating weight: 8600KG
Load bucket capacity: 1m³
Backhoe bucket capacity: 0.3m³
Technical Parameters
-
Overall dimensionsOperating weight
8600KG
Overall dimension(L×W×H)6130×2480×3465mm
Wheel base2280±10mm
Wheel tread1890(F)/1730(R)mm
Ground clearance400mm
-
PerformanceLoad bucket capacity
1m³
Load breakout force47KN
Load lifting capacity2500KG
Bucket unloading height2807
Bucket unloading distance801±20mm
Digging depth56mm
Backhoe bucket capacity0.3m³
Backhoe digging force49.8KN
Backhoe swing angle180°
Bucket unloading height3813mm
Max.Digging depth5346mm
Max.Traction force81KN
-
EngineModel
Cummins4BTA3.9-C110-II
TypeInline,direct injection,water-cooled,turbocharged,four-stroke
Cylinders-Inner diameter×stroke4-102×120
Rated power82KW
Rated speed2200r/min
Min.fuel consumption2224g/kw.h
Max.torque460N.m
Displacement3.9L
-
System pressureLoading hydraulic system
20Mpa
Excavation hydraulic system20Mpa
Steering hydraulic system16MPa
-
Steering systemType
Hydraulic steering
Steering gear modelBZZ-250
Pump displacement63ml/r
Pump modelCBG2063
Steering angle±96°
Min.Turning radius5950mm
-
Driving axleModel
26.22-190028.43M-1654
Rated front axle load22.5T
Rated rear axle load18.75T
-
Transmission systemModel
TLB1 – 4WD
Gears4F、4R
Cooling modePressure oil circulation
-
TyresFront/Rear model
14-17.5/19.5-24
Front tyre pressure0.4Mpa
Rear tyre pressure0.35Mpa
Max.travel speed39Km/h
-
Brake systemTraveling brake
Wet internal self-regulatic self-balance type
Parking brakeManual brake
