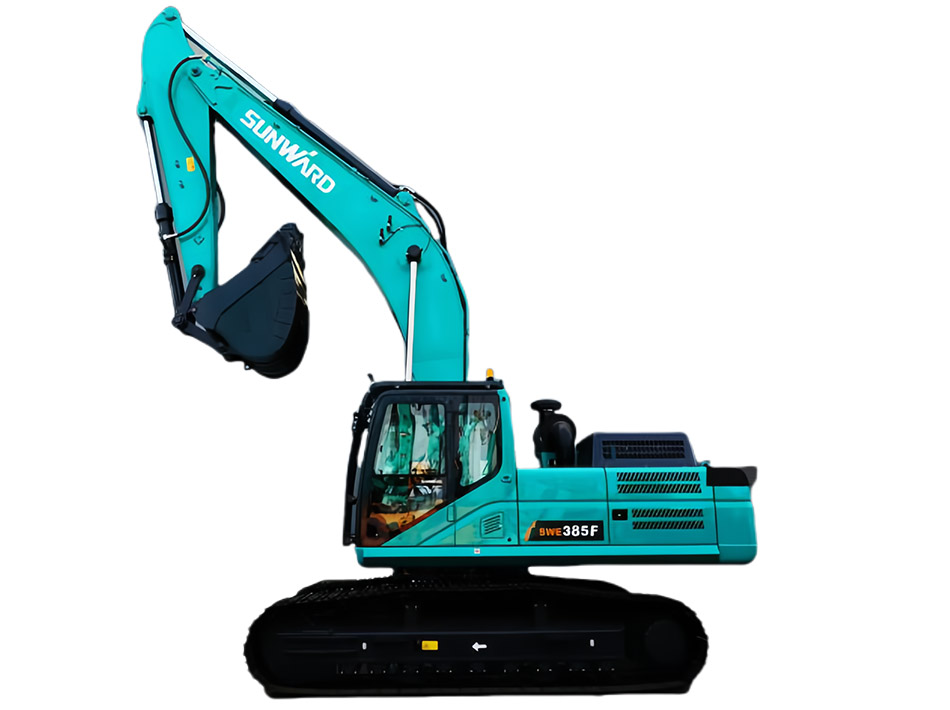

SWE385F

Technical Parameters

• Main parameters
  Total weight

  38.5 t

  Engine power:

  241kW/2000 rpm

  Bucket capacity:

  1.8 m³

• Specification
  Operating weight

  38500 kg

  Bucket capacity

  1.8 m3

• Hydraulic system
  Main pump type

  Variable plunger pump

  Max.main pump flow

  2×324 L/min

  System pressure

  34.3 Mpa

  Pilot pump type

  Gear pump

  Max.pilot flow

  27 L/min

  Pilot pressure

  3.9 Mpa

• Oil tank capacity
  Fuel tank

  700 L

  Hydraulic oil tank

  475 L

• Engine
  Model

  6LTAA8.9

  Rated power

  241/2000 kw/rpm

  Max.torque

  1400/1400 N.m/rpm

  Displacement

  8.9 L

• Performance
  Swing speed

  9.1 rpm

  Travel speed(Max/Min)

  6.2/3.6 km/h

  Gradeability

  70 %

  Ground pressure

  58.5 kPa

• Working range、Digging force
  Boom length

  6500 mm

  Arm length

  3260 mm

  Max.digging height

  10675 mm

  Max.dumping height

  7575 mm

  Max.digging depth

  7420 mm

  Max.depth cut for 2440 mm level bottom

  7255 mm

  Max.vertical digging depth

  6335 mm

  Max.digging reach

  11285 mm

  Max.ground digging reach

  11077 mm

  Min.front swing radius

  4410 mm

  Bucket digging force

  600 mm

  Max height of total machine

  253 kN

  Arm digging force

  180 kN

• Outline dimensions
  Total length

  11370 mm

  Total height

  3730 mm

  Total width

  3390 mm

  Counterweight ground clearance

  1270 mm

  Min.ground clearance

  537 mm

  Tail swing radius

  3620 mm

  Track ground length

  4025 mm

  Track length

  4940 mm

  Track gauge

  2590 mm

  Track width

  3390 mm

  Track shoe width

  800 mm

  Max.main machine height

  3275 mm

  Turntable width

  3120 mm
