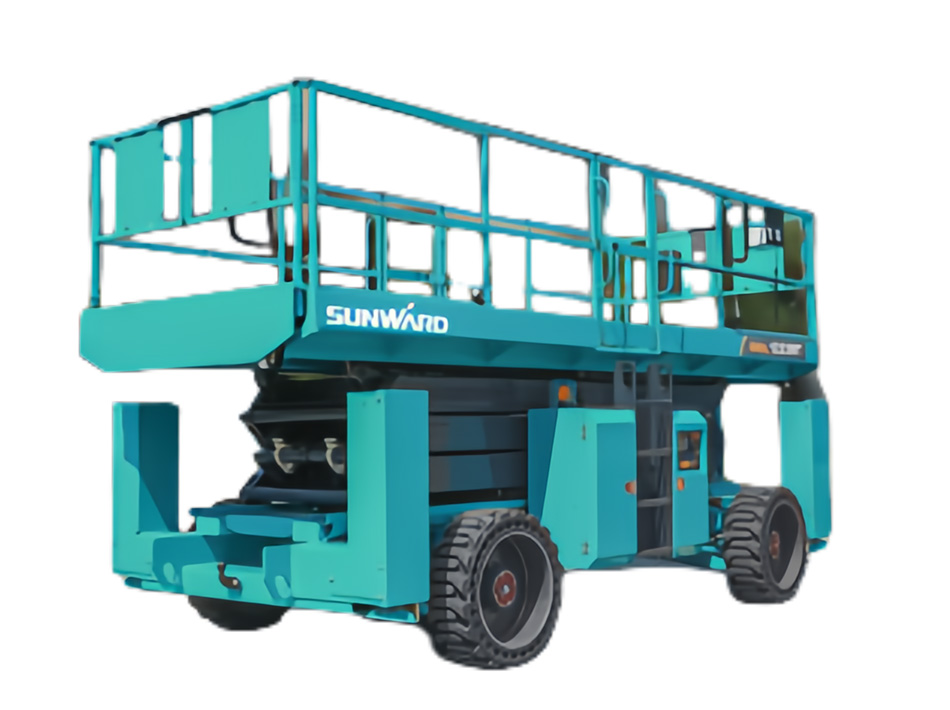

SWSL1223RT
Max.operating height: 12m
Max.platform height: 10m
Technical Parameters
-
DimensionMax.operating height
12m
Max.platform height10m
Storage platform height1.72m
Operating platform length5.33m
Extended dimension of platform1.2m
Operating platform width1.9m
Height-storage(guardrail lift)2.88m
Height-storage(guardrail folded)2.05m
Overall width2.39m
Overall length5.33m
Wheelbase2.88m
-
PerformanceRated load
1200kg
Safety operation load of extended platform227kg
Max.number of people the platform can hold5
Travel speed(retracted condition)10km/h
Turning radius-inside2.08m
Turning radius-outside5.3m
Lifting/descending speed46/46s
Max.gradeability40%
Max.allowable angle of operationproportion
ControlFour wheels
Drive33×12-20
Tyre-solid and no marks (outer diameter*width)Kubota V2403-CR-T-EW03
Power47.9kw/2700rpm
Battery151L
Charger95L
Weight8170kg
