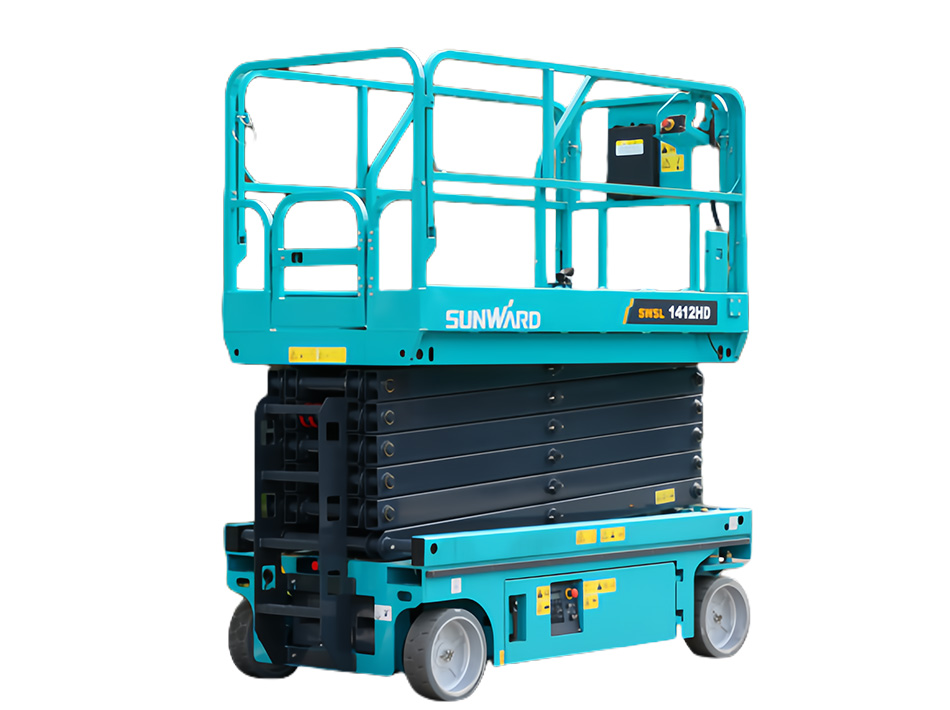

SWSL1412HD

Technical Parameters

• Dimension
  Max.operating height

  14m

  Max.platform height

  12m

  Storage platform height

  1.49m

  Operating platform length

  2.27m

  Extended dimension of platform

  0.9m

  Operating platform width

  1.15m

  Height-storage(guardrail lift)

  2.63m

  Height-storage(guardrail folded)

  2.09m

  Overall length

  2.47m

  Overall width

  1.17m

  Wheel base

  1.87m

  Ground clearance(retracted condition)

  0.11m

  Ground clearance(extended condition)

  0.02m

• Performance
  Rated load

  320kg

  Safety operation load of extended platform

  113kg

  Max.number of people the platform can hold

  2

  Travel speed(retracted condition)

  3.2km/h

  Travel speed(extended condition)

  0.8km/h

  Turning radius-inside

  0m

  Turning radius-outside

  2.2m

  Lifting/descending speed

  62/42s

  Max.gradeability

  25%

  Max.allowable angle of operation

  1.5°/3°

  Control

  Proportion

  Drive

  Double front wheel

  Multi-disc brake

  Double rear wheel

  Tyre-solid and no marks (outer diameter*width)

  381mm×127mm

• Power
  Battery

  4x12V/300Ah

  Charger

  24V/30A

  Weight

  2980kg
