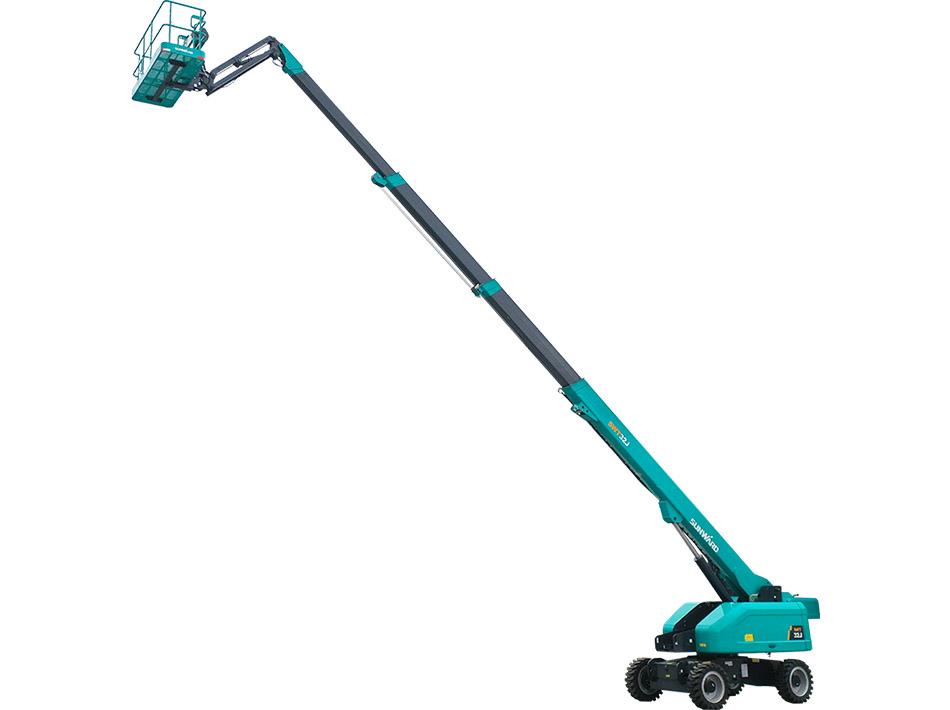

SWT32J
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
DimensionMax. working height
32m
Max.platfrom height30m
Max. horizontal extension19.1m
Length – Stored12.4m
Height – Stored2.83m
Overall width3.0m
Size of working platform2.44*0.91m
-
PerformanceRated load
230/340kg
Platform rotation180°
Rotating turntable360°continuous
Traveling speed – Storage5.8km/h
Gradeability – four wheel driven – storage45%
Max. allowable angle of work4°
EngineYuChaiYCF3075-T480
Overall weight19950kg
