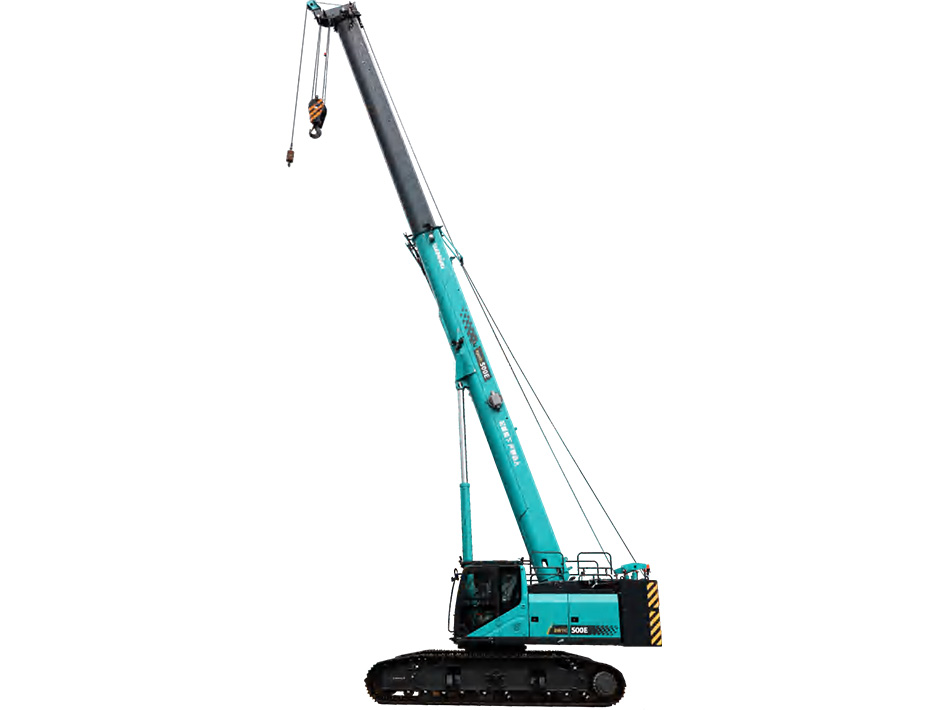

SWTC500E
Total length: 14133mm
Total width: 4700/2990mm
Technical Parameters
-
Dimension parametersTotal length
14133mm
Total width4700/2990mm
Total height3180mm
Center distance between driving and driven wheels4968mm
Track width700mm
-
Main performance parametersMaximum rated lifting capacity
50t
Magnification at maximum rated lifting capacity12n
Diameter of lifting wire ropeΦ16mm
Maximum lifting moment of basic boom160t.m
Fully-retracted length of main boom34m
Fully-extended length of main boom11.4m
Maximum working amplitude44.5m
Length of jib9.2/16m
Jib mounting angle0、15、30°
-
Operating speedLifting/lowering time of main boom
40/45s
Full extension/retraction time of main boom98/100s
Maximum slewing speed2.7r/min
Boom lifting speed (four sections with no load)150m/min
Jib lifting speed (four sections with no load)150m/min
-
Driving parametersDriving speed
3/1.24km/h
Maximum gradeability45%
Ground pressure0.08Mpa
-
Dynamic parametersDriving speed
3/1.24km/h
Maximum gradeability45%
Ground pressure0.08Mpa
Engine modelCummins QSB6.7-C250
Engine power186kW
Engine rated speed2200r/min
Engine emission standardEU Stage V
-
Volume parametersHydraulic fuel tank volume
650L
Oil tank capacity400L
-
Weight parametersCounterweight
18t
Total mass in driving state54.3t
