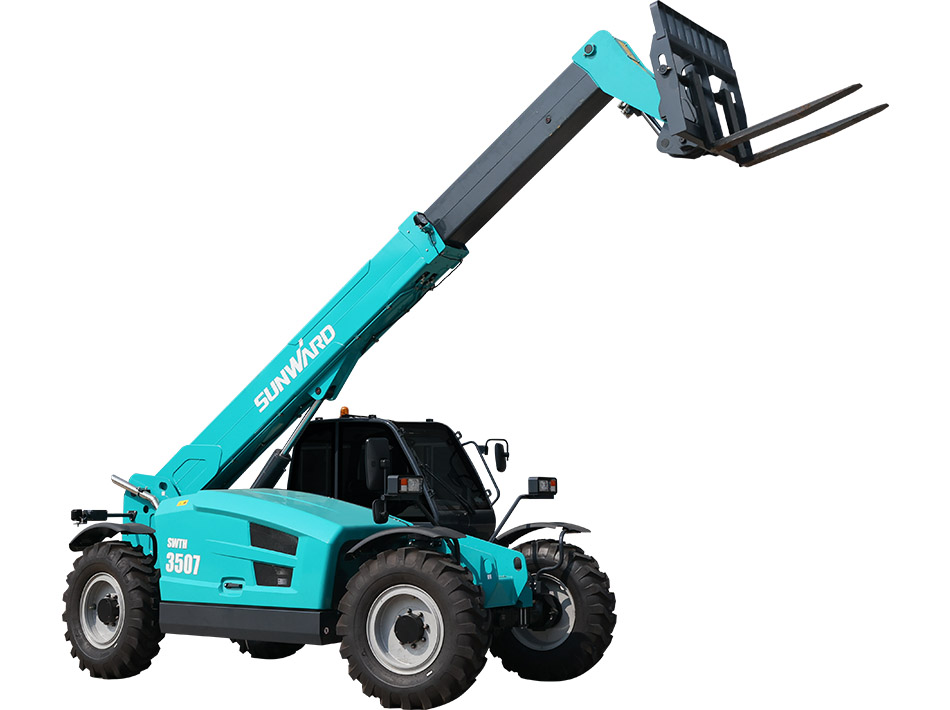

SWTH3507
Engine Power: 88kW
Machine Weight: 8180kg
Technical Parameters
-
SizeA Length to pallet fork
5090mm
B Width2410mm
C Height2390mm
D Wheel base2420mm
E Ground clearance440mm
F Wheel tread2050mm
G Cab width950mm
H Length to front wheel4840mm
-
Basic parametersOverall dimensions (LxWxH)
6292mm*2410mm*2390mm
Overall weight (no-load)8180kg
Rated bearing capacity3500kg
Maximum lifting height7.43m
Loading capacity at maximum extension length2500kg
Maximum extension length3.83m
Loading capacity at maximum extension length1500kg
Frame leveling angle/
Ground clearance440mm
Turning radius (outside)4.2m
Traction force90kN
-
Actuation timeNo-load lifting time
12S
No-load descending time10S
No-load full retraction time6S
No-load full extension time9S
-
Power trainDrive mode
hydrodynamic driven
Gear stage (forward/backward)4/3
Maximum travel speed31.5km/h
Gradeability60%
-
EngineBrand
Yuchai
ModelYC4DK120-T301
Power88kW
Emission Standard/
Maximum torque420N.m
Oil injection methodElectronic injection
Cooling methodWater cooling
-
Hydualic PumpBrand
HENGLI
ModelPlunger pumpHP5V76
Country of OriginCHINA
Capacity60
-
Travel DeviceManufacturer
DANA
ModelTS340
Country of OriginCHINA
-
TransmissionManufacturer
ZF
Model4WG98
Country of OriginGERMANY
-
CabinROPS, FOPS
WITH
Rear View CameraWITH
MonitorWITH
Rear View Mirror, Qty1
RadioWITH
AirconditionerWITH
-
Boom ArrangementTyres
2
Nos. of Boom Cylinders1
-
TyresFront
13.00-24
ManufacturerQIANJIN
Country of OriginCHINA
Rear13.00-24
ManufacturerQIANJIN
Country of OriginCHINE
Drive4*4
-
OutriggersFront (STD / Option)
WITHOUT
Rear (STD/Option)WITHOUT
-
Coupling DeviceManufacturer
NA
Standard/OptionalStandard
Suitable ForAll optional attachments
-
AttachmentsStandard
Fork
OptionsBucket, Hanging Bucket, Clamping Bucket, Lifting Hook
-
System capacityHydraulic oil
200L
Fuel oil155L
Engine oil12.2L
Cooling Liquid16L
Pallet fork1200mmx125mmx50mm
