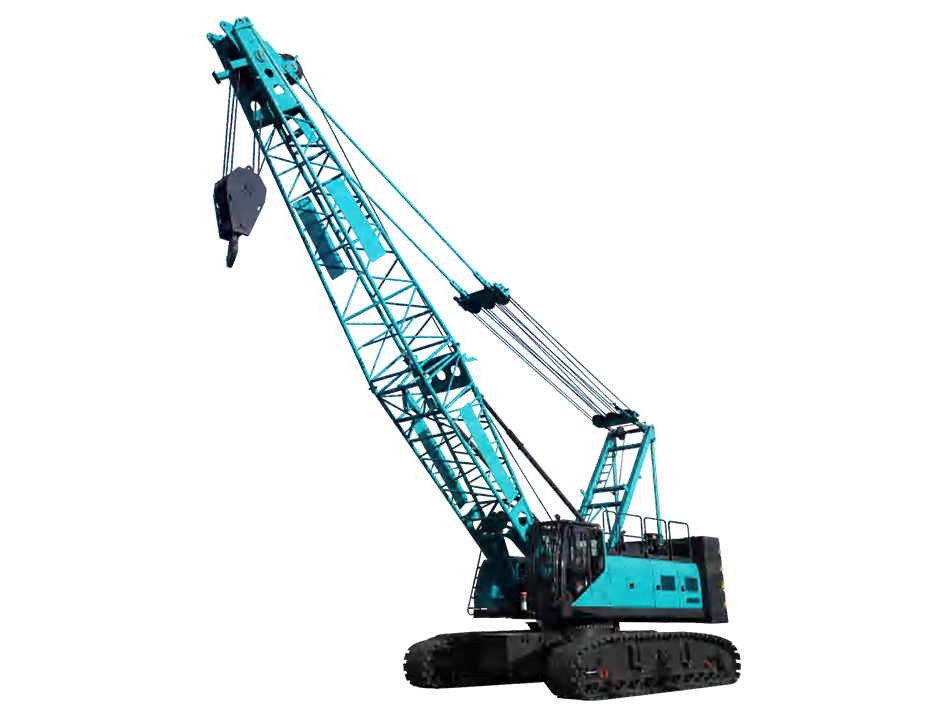

SWCC1000E
Max. lifting capacity: 100t
Length of main boom: 13〜 64m
Technical Parameters
-
Overall performance parametersMax. lifting capacity
100t
Length of main boom13〜 64m
Jib length (optional)12〜 18m
Max. length of main boom + jib52+18m
Boom lifting rate12.5t
Climbing capacity (with basic boom, and the cab in the rear)30%
Engine model, rated output power/speedWP7 G300 220/2300KW/r/min
Total weight (with basic boom and 100 t main hook)85t
Ground contact pressure(with basic boom and 100 t main hook)0.09MPa
Rear counterweight32t
Track gauge x ground contact length x crawler plate width2600 × 5440 × 800/4300 × 5440 × 800mm
Overall dimensions (L×W×H)12750 × 3400 × 3440mm
-
Operating speedBoom/Jib lifting speed
0〜 142m/min
Boom luffing speed0〜 85m/min
Slewing speed0〜 2.5r/mi
Traveling speed1.6/0.8km/h
