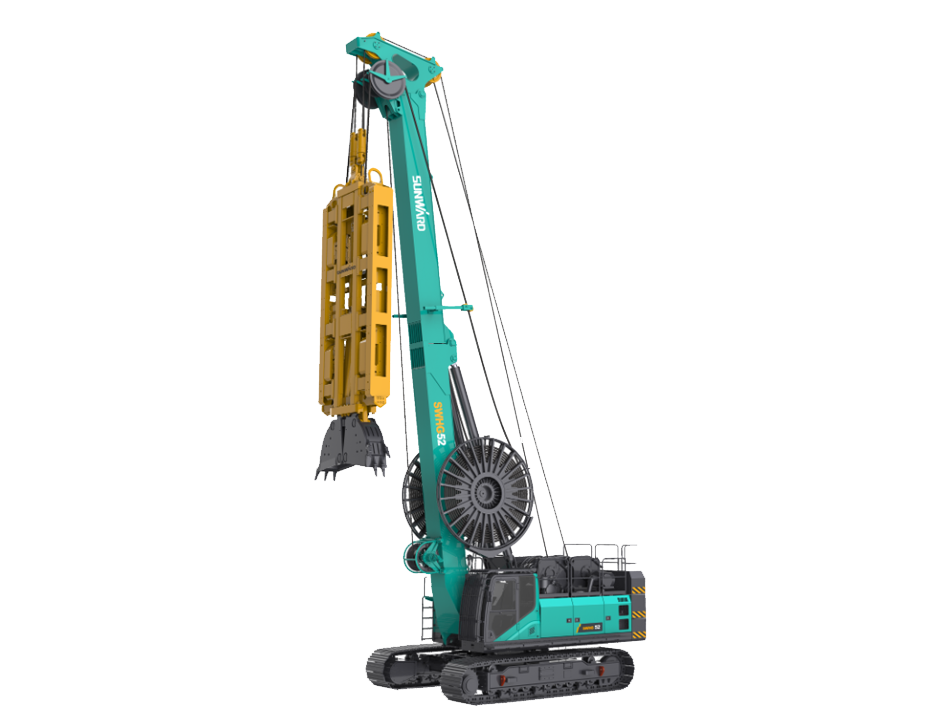

SWHG52
Maximumliftingcapacity: 2*260
Diameterofwirerope: 32mm
Technical Parameters
-
UNDERCARRIAGEMaximum lifting capacity
2x260KN
Diameter of wire rope32mm
Winching speed75/50 m/min
Engine modelQSM11
Engine power298/2000 kw
System flow2×430 L/min
System pressure32 MPa
Stretch width3200/4700mm
Two whccl center distance of track4940mm
Width of track shoe900mm
Traveling speed1.5km/h
Maximum grooving depth75m
Grooving thickness600-1200 mm
Closing force of grab1600KN
Grab opening5s
Grab closing5s
Grab weight closing14-28t
Working height17.3m
Working radius4600-5450mm
Working height above ground5500mm
Machine weight (w/o grab)80t
