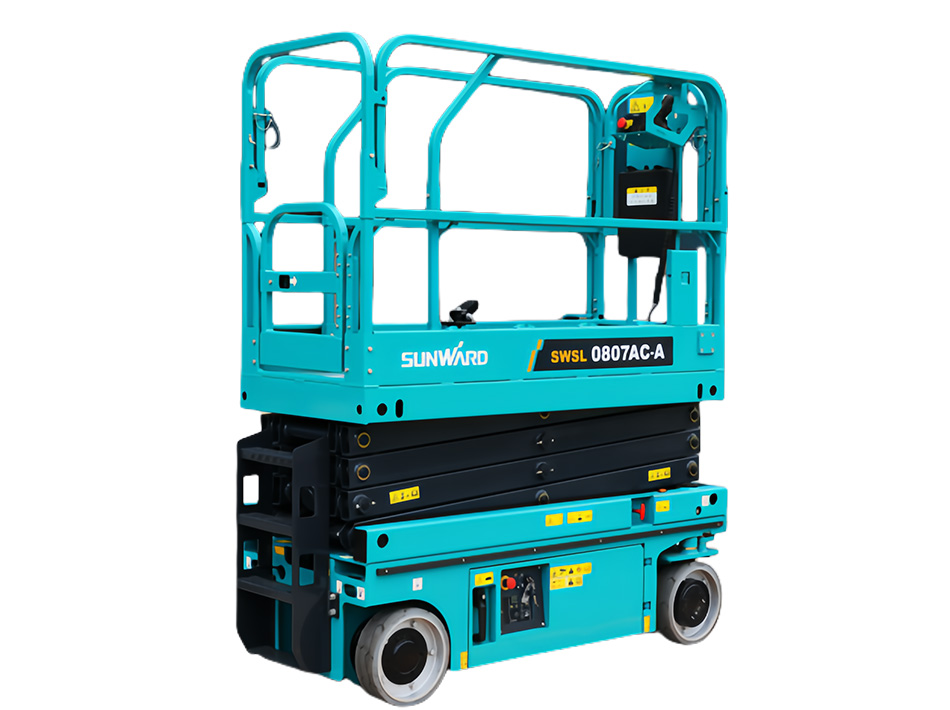

SWSL0807AC-A

Technical Parameters

• Dimension
  Maximum working height

  7.8m

  Maximum platform height

  5.8m

  Heigh of retracted platform

  1.05m

  Length of working platform

  1.7m

  Extension dimension of platform

  0.9m

  Width of working platform

  0.74m

  Height-retracted (guardrail raised)

  2.17m

  Height-retracted (guardrail folded)

  1.79m

  Overall length

  1.86m

  Overall width

  0.76m

  Wheel base

  1.38m

  Ground clearance (retracted state)

  0.083m

  Ground clearance (extended state)

  0.02m

• Performance
  Rated load

  230Kg

  Safety operation load of extended platform

  113kg

  Max.number of people the platform can hold

  2

  Travel speed (retracted state)

  4.0Km/h

  Travel speed (extended state)

  0.8km/h

  Ascending/de sc ending speed

  0.4m

  Turning radius-outside

  18s/25s

  Maximum gradeability

  20/22s

  Max.gradeability

  25%

  Maximum allowed working angle

  1.5°/3°

  Drive

  Two front wheels

  Multi-disc brake

  Two front wheels

  Tire-airless without imprint(outer diameterxwidth)

  323mm-100mm

  Battery

  Double rear wheel

  Tyre-solid and no marks (outer diameter*width)

  4-6V/200Ah

  Charger

  24V/30A

  Weight

  1520kg
